POWER COMPONENTS
A Soft recovery Diode is a diode where the ratio of Trrr to Trrf is approximately 1 to 3. These diodes are designed to prevent high dI/dt currents from causing high voltage spikes in circuits with inductors, since Voltage = L(dI/dt).
Let us consider that in any circuit there will always be a certain inductance, even if only parasitic.
Recovery fast diodes are used in switching power supply circuits used in DC/DC converters, power factor correction circuits, motor control and other high switching speed PWM applications where diodes are often required capable of quickly restoring an operating point.
"Fast" and "ultrafast" diodes are so called because they stop conducting current in the opposite direction very quickly. "Soft" is a term applied to a subset of always-fast rectifiers that restore the non-conducting state rapidly, but non-abruptly.
Sanrex
Diode -> Soft Recovery Diode
A Soft recovery Diode is a diode where the ratio of Trrr to Trrf is approximately 1 to 3.
These diodes are designed to prevent high dI/dt currents from causing high voltage spikes in circuits with inductors, since Voltage = L(dI/dt).
Consider that in any circuit there will always be a certain inductance, even if only parasitic.
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
DBA100UA40
400V | 2X50A | 99°C | 1000A2s | 490A | 1,10V
|
400V | 2X50A | 99°C | 1000A2s | 490A | 1,10V | POWER MODULE SOFT RECOVERY DIODE 400V 2x50A |
|
DBA200UA40
400V | 2X100A | 96°C | 2100A2s | 700A | 1,05V
|
400V | 2X100A | 96°C | 2100A2s | 700A | 1,05V | POWER MODULE SOFT RECOVERY DIODE 400V 2x100A | |
|
DBA200UA60
600V | 2X100A | 89°C | 2100A2s | 700A | 1,20V
|
600V | 2X100A | 89°C | 2100A2s | 700A | 1,20V | Power Module Very Soft Recovery Diode 600V 2x100A | |
|
DBA200WA40
400V | 2X100A | 96°C | 5050A2s | 1000/1100A | 1,10V
|
400V | 2X100A | 96°C | 5050A2s | 1000/1100A | 1,10V | Power Module Soft Recovery Diode 400V 2x100A | |
|
DBA200WA60
600V | 2X100A | 89°C | 2100A2s | 1000A | 1,25V
|
600V | 2X100A | 89°C | 2100A2s | 1000A | 1,25V | POWER MODULE SOFT RECOVERY DIODE 600V 2x100A | |
|
DBA200XA20
200V | 2X100A | 97°C | 5000A2s | 1000/1100A | 0,95V
|
200V | 2X100A | 97°C | 5000A2s | 1000/1100A | 0,95V | Power Module Soft Recovery Diode 200V 2x100A | |
|
DSR200BA
500V | 200A | 85°C | 45000A2s | 3300A | 1,20V
|
500V | 200A | 85°C | 45000A2s | 3300A | 1,20V | POWER MODULE SOFT RECOVERY DIODE 500V 200A |
Power Module -> SiC Mosfet
| Image | Code | VDS [V] | Ifa[A] | Tc [°C] | RDS(on) | Package | |
|---|---|---|---|---|---|---|---|
|
FCA100AC120
1200V | 100A | 90°C | 6.8mΩ | Module
|
1200V | 100A | 90°C | 6.8mΩ | Module | SiC MOSFET MODULE 1200V 100A |
|
FCA150AC120
1200V | 150A | 90°C | 6mΩ | Module
|
1200V | 150A | 90°C | 6mΩ | Module | Sic Mosfet + Mosfet Fca-xb 1200V 150A | |
|
FMG50AQ120N6
1200V | 50A | 108°C | 13mΩ | TO-247-4L
|
1200V | 50A | 108°C | 13mΩ | TO-247-4L | SiC MOSFET TO247 INSULATED TYPE |
Diode -> 3-Phase Diode
The 3-Phase Diode allow to improve the voltage and current waveforms both on the mains side (current closest to a sinusoid) and on the load side (more constant voltage). The most used configuration is the bridge one. Configurations can be:
- Half-wave rectifier
- Full wave rectifier (bridge)
There is also the controlled version, in which the diodes are replaced by thyristors. In this case the thyristors are used to differentiate the output voltage by varying the firing angle (or firing delay). The main application of these rectifiers is in the speed control of DC motors.
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|

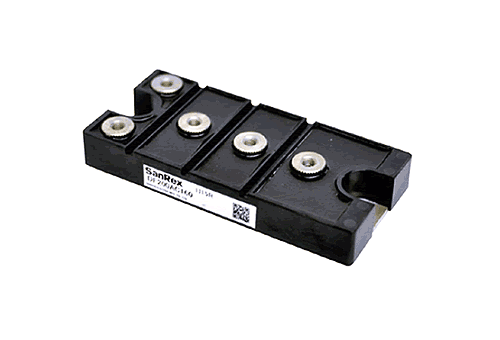

DF200AC160
1600V | 200A | 106°C | 26000A2s | 2280/2500A | 1,20V
|
1600V | 200A | 106°C | 26000A2s | 2280/2500A | 1,20V | 3-PHASE DIODE DF-LA 1600V 200A |
|
DF20NA80F1/160F1
800-1600V | 20A | 111°C | 500A2S | 320/350A | 1,20V
|
800-1600V | 20A | 111°C | 500A2S | 320/350A | 1,20V | 3-PHASE Diode Df-na 800-1600V 20A |
|
DF20NA80S1/160S1
20A | 111°C
|
20A | 111°C | 3-PHASE DIODE DF-NA 800-1600V 20A | |||||
|
DF30NA80F1/160F1
800-1600V | 30A | 92°C | 660A2s | 365/400A | 1,20V
|
800-1600V | 30A | 92°C | 660A2s | 365/400A | 1,20V | 3-PHASE DIODE DF-NA 800-1600V 30A | |
|
DF30NA80S/160S
800-1600V | 30A | 92°C | 660A2s | 365/400A | 1,20V
|
800-1600V | 30A | 92°C | 660A2s | 365/400A | 1,20V | 3-PHASE DIODE DF-NA 800-1600V 30A |
|
DF100AA120/160
1200-1600V | 100A | 102°C | 4100A2s | 910/1000A | 1,20V
|
1200-1600V | 100A | 102°C | 4100A2s | 910/1000A | 1,20V | 3-PHASE Diode Df-na 1200-1600V 100A |
|
DF150AB160
1600V | 150A | 100°C | 6000A2S | 1100/1200A | 1,20V
|
1600V | 150A | 100°C | 6000A2S | 1100/1200A | 1,20V | Power Module 3-PHASE Diode 1600V 150A Isolated Pkg |
|

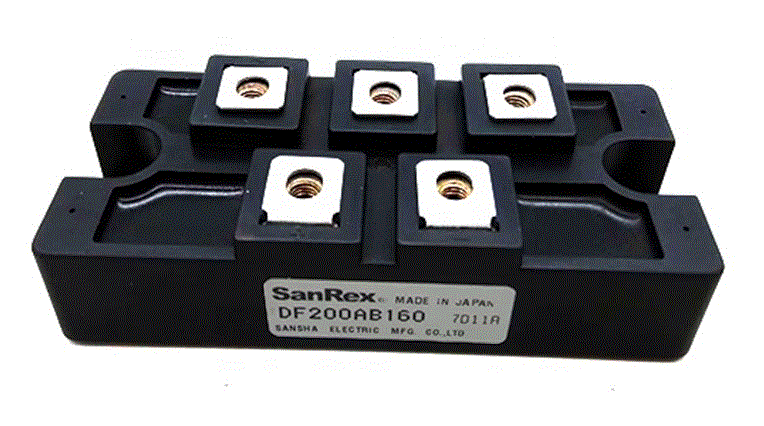

DF200AB160
1600V | 200A | 102°C | 17000A2S | 1850/2000A | 1,20V
|
1600V | 200A | 102°C | 17000A2S | 1850/2000A | 1,20V | Power Module 3-PHASE Diode 1600V 200A Isolated Pkg |
|
DF100NB160
1600V | 100A | 98°C | 4100A2s | 910/1000A | 1,16V
|
1600V | 100A | 98°C | 4100A2s | 910/1000A | 1,16V | 3-PHASE Diode Df-nb 1600V 100A |
|
DF30AA160
1600V | 30A | 117°C | - | 270/300A | 1.3V
|
1600V | 30A | 117°C | - | 270/300A | 1.3V | 3-PHASE Diode Bridge Type 1600V 30A |
Diode -> Triac -> High Power
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
TMG12D60F
600V | 12A | 79°C | 71A2s | - | -
|
600V | 12A | 79°C | 71A2s | - | - | TO-3P TRIAC 600V 12A |
Power Module -> IGBT
Features
- Standard SOT-227 compact package
- Directly attachable to the heat sink
- 2500V isolation voltage
- RoHS compliant
- 150°C maximum operating temperature
- -40°C minimum operating temperature
- 500W power dissipation
- 20V maximum gate emitter voltage
- SMD/SMT mounting style
- 38.1mm × 25.3mm package
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
GCA100AA120
1200V | 100A | 25°C | - | - | -
|
1200V | 100A | 25°C | - | - | - | Igbt Module 1200V 100A |
Diode -> Fast Recovery Diode
Fast recovery diodes are used in switching power supply circuits used in DC/DC converters, power factor correction circuits, motor control and other high switching speed PWM applications where are often required diodes capable of quickly restoring an operating point. "Fast" and "ultrafast" diodes are so called because they stop conducting current in the opposite direction very quickly. "Soft" is a term applied to a subset of always-fast rectifiers that restore the non-conducting state rapidly, but non-abruptly.
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
DKR200AB60
600V | 200A | 133°C | 54000A2s | 3600A | 1,40V
|
600V | 200A | 133°C | 54000A2s | 3600A | 1,40V | POWER MODULE FAST RECOVERY DIODE 600V 100A |
|
DKR300AB60
600V | 300A | 124°C | 54000A2s | 3600A | 1,40V
|
600V | 300A | 124°C | 54000A2s | 3600A | 1,40V | POWER MODULE FAST RECOVERY DIODE 600V 150A | |
|
DKR400AB60
600V | 200A | 122°C | 150000A2s | 6000A | 1,40V
|
600V | 200A | 122°C | 150000A2s | 6000A | 1,40V | POWER MODULE FAST RECOVERY DIODE 600V 200A | |
|

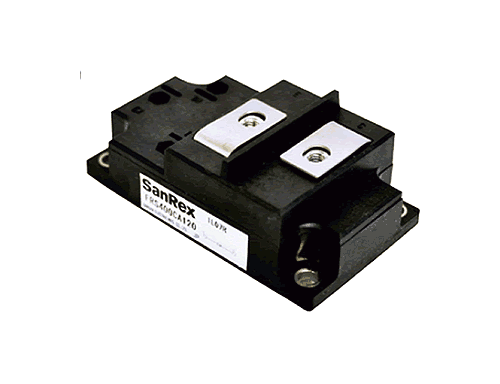

FRS400CA120R
1200V | 400A | 78°C | 66640A2s | 4000A | 1.8V
|
1200V | 400A | 78°C | 66640A2s | 4000A | 1.8V | POWER MODULE FAST RECOVERY DIODE 1200V 400A |
|
FRS400EA200
2000V | 400A | 79°C | 104000A2s | 5000A | 2.2V
|
2000V | 400A | 79°C | 104000A2s | 5000A | 2.2V | POWER MODULE FAST RECOVERY DIODE 2000V 400A | |
|
FRS150BA50
500V | 150A | 85°C | 37500A2s | 3000A | 1.3V
|
500V | 150A | 85°C | 37500A2s | 3000A | 1.3V | POWER MODULE FAST RECOVERY DIODE 500V 150A |
|
FRS300BA50
500V | 300A | 85°C | 66600A2s | 4000A | 1.3V
|
500V | 300A | 85°C | 66600A2s | 4000A | 1.3V | POWER MODULE FAST RECOVERY DIODE 500V 300A | |
|
FRS300CA50
500V | 300A | 116°C | 66600A2s | 4000A | 1.3V
|
500V | 300A | 116°C | 66600A2s | 4000A | 1.3V | POWER MODULE FAST RECOVERY DIODE 500V 300A | |
|
FRS400BA60
600V | 400A | 94°C | 66640A2s | 4000A | 1,40V
|
600V | 400A | 94°C | 66640A2s | 4000A | 1,40V | POWER MODULE FAST RECOVERY DIODE 600V 400A | |
|
FRS200BA60
600V | 200A | 94°C | 45000A2s | 3300A | 1.3V
|
600V | 200A | 94°C | 45000A2s | 3300A | 1.3V | POWER MODULE FAST RECOVERY DIODE 600V 200A |
|
DMG60UL20
200V | 60A | 105°C | 3375A2s | 900A | 1.05V
|
200V | 60A | 105°C | 3375A2s | 900A | 1.05V | Fast Recovery Diode 200V 60A Non Isolated Pk |
|
|
DBA200YA40
400V | 2X100A | 89°C | 5000A2s | 1000/1100A | 1,20V
|
400V | 2X100A | 89°C | 5000A2s | 1000/1100A | 1,20V | Power Module Fast Soft Recovery Diode 400V 2x100A |
|
FRD100CA120
1200V | 100A | 78°C | 16600A2s | 2000A | 1.80V
|
1200V | 100A | 78°C | 16600A2s | 2000A | 1.80V | POWER MODULE FAST RECOVERY DIODE 1200V 100A |
|
DKR200BE60
600V | 200A | 120°C | 54000A2s | 3600/3200A | 1.14V
|
600V | 200A | 120°C | 54000A2s | 3600/3200A | 1.14V | Power Module Fast Recovery Diode 600V 100A |
|
DBA200ZA20
200V | 2X100A | 98°C | 5000A2s | 1000/1100A | 1.0V
|
200V | 2X100A | 98°C | 5000A2s | 1000/1100A | 1.0V | POWER MODULE FAST RECOVERY DIODE 200V 2x100A |
Shindengen Electric Manufacturing Co., Ltd.
Power Module -> Mosfet
| Image | Code | VDS [V] | Ifa[A] | Tc [°C] | RDS(on) | Package | |
|---|---|---|---|---|---|---|---|
|
MG031L080006A
60V | 80A | 25°C | 3.74mΩ | MG031
|
60V | 80A | 25°C | 3.74mΩ | MG031 | 3 phase Inverter Module 60V 80A |
Diode -> Fast Recovery Diode
Fast recovery diodes are used in switching power supply circuits used in DC/DC converters, power factor correction circuits, motor control and other high switching speed PWM applications where are often required diodes capable of quickly restoring an operating point. "Fast" and "ultrafast" diodes are so called because they stop conducting current in the opposite direction very quickly. "Soft" is a term applied to a subset of always-fast rectifiers that restore the non-conducting state rapidly, but non-abruptly.
