    Diode Soft Recovery Diode

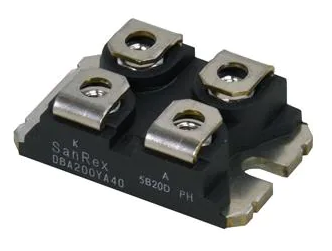

    POWER MODULE SOFT RECOVERY DIODE 600V 2x100A

    Documentation

    Sanrex

    Diode -> Soft Recovery Diode

    A Soft recovery Diode is a diode where the ratio of Trrr to Trrf is approximately 1 to 3.
    These diodes are designed to prevent high dI/dt currents from causing high voltage spikes in circuits with inductors, since Voltage = L(dI/dt).
    Consider that in any circuit there will always be a certain inductance, even if only parasitic.

    Image Code Vrrm [V] Ifa[A] Tc [°C] I2t Ifsm Vfm
    PpfCq5TIv5Nzilx DBA100UA40

    400V
    |
    2X50A
    |
    99°C
    |
    1000A2s
    |
    490A
    |
    1,10V

    		 400V 2X50A 99°C 1000A2s 490A 1,10V POWER MODULE SOFT RECOVERY DIODE 400V 2x50A
    DBA200UA40

    400V
    |
    2X100A
    |
    96°C
    |
    2100A2s
    |
    700A
    |
    1,05V

    		 400V 2X100A 96°C 2100A2s 700A 1,05V POWER MODULE SOFT RECOVERY DIODE 400V 2x100A
    DBA200UA60

    600V
    |
    2X100A
    |
    89°C
    |
    2100A2s
    |
    700A
    |
    1,20V

    		 600V 2X100A 89°C 2100A2s 700A 1,20V Power Module Very Soft Recovery Diode 600V 2x100A
    DBA200WA40

    400V
    |
    2X100A
    |
    96°C
    |
    5050A2s
    |
    1000/1100A
    |
    1,10V

    		 400V 2X100A 96°C 5050A2s 1000/1100A 1,10V Power Module Soft Recovery Diode 400V 2x100A
    DBA200WA60

    600V
    |
    2X100A
    |
    89°C
    |
    2100A2s
    |
    1000A
    |
    1,25V

    		 600V 2X100A 89°C 2100A2s 1000A 1,25V POWER MODULE SOFT RECOVERY DIODE 600V 2x100A
    DBA200XA20

    200V
    |
    2X100A
    |
    97°C
    |
    5000A2s
    |
    1000/1100A
    |
    0,95V

    		 200V 2X100A 97°C 5000A2s 1000/1100A 0,95V Power Module Soft Recovery Diode 200V 2x100A
    bbQPCH0oktDGEZU DSR200BA

    500V
    |
    200A
    |
    85°C
    |
    45000A2s
    |
    3300A
    |
    1,20V

    		 500V 200A 85°C 45000A2s 3300A 1,20V POWER MODULE SOFT RECOVERY DIODE 500V 200A
    DRZeNAqxrOcim0C DCA100AA60

    600V
    |
    100A
    |
    85°C
    |
    16700A2s
    |
    2000A
    |
    1,18V

    		 600V 100A 85°C 16700A2s 2000A 1,18V POWER MODULE SOFT RECOVERY DIODE 600V 100A
    DCA150AA60

    600V
    |
    150A
    |
    72°C
    |
    26000A2s
    |
    2500A
    |
    1,18V

    		 600V 150A 72°C 26000A2s 2500A 1,18V POWER MODULE SOFT RECOVERY DIODE 600V 150A
