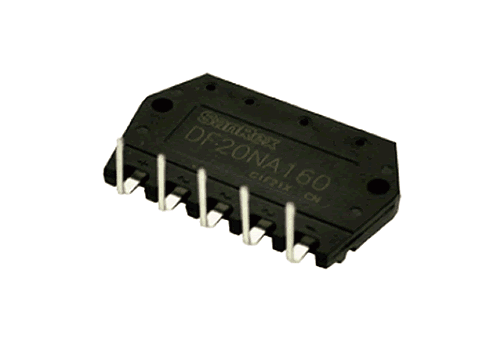

DF20NA80F1/160F1
Certifications title
Power Module 3-Phase Diode
3-PHASE Diode Df-na 800-1600V 20A
Documentation
-
TypePower Module 3-Phase Diode
-
Brand nameSanrex
-
Alternatives
- GUO 40-08NO1
- GUO 40-12NO1
- GUO 40-16NO1
-
Vrrm [V]800-1600V
-
Ifa[A]20A
-
Tc [°C]111°C
-
I2t500A2S
-
Ifsm320/350A
-
Vfm1,20V
-
Data sheet
-
Other related articles
Sanrex
Power Module -> 3-Phase Diode
The 3-Phase Diode allow to improve the voltage and current waveforms both on the mains side (current closest to a sinusoid) and on the load side (more constant voltage). The most used configuration is the bridge one. Configurations can be:
- Half-wave rectifier
- Full wave rectifier (bridge)
There is also the controlled version, in which the diodes are replaced by thyristors. In this case the thyristors are used to differentiate the output voltage by varying the firing angle (or firing delay). The main application of these rectifiers is in the speed control of DC motors.
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
DF200AC160
1600V | 200A | 106°C | 26000A2s | 2280/2500A | 1,20V
|
1600V | 200A | 106°C | 26000A2s | 2280/2500A | 1,20V | 3-PHASE DIODE DF-LA 1600V 200A |
|
DFA200AA160
1600V | 200A | 96°C | 17000A2S | 1850/2000kA | 1,35V
|
1600V | 200A | 96°C | 17000A2S | 1850/2000kA | 1,35V | 3-PHASE DIODE THRYRISTOR DFA 1600V 200A ISOLATED PCK |
|
DF20NA80F1/160F1
800-1600V | 20A | 111°C | 500A2S | 320/350A | 1,20V
|
800-1600V | 20A | 111°C | 500A2S | 320/350A | 1,20V | 3-PHASE Diode Df-na 800-1600V 20A |
|
DF20NA80S1/160S1
20A | 111°C
|
20A | 111°C | 3-PHASE DIODE DF-NA 800-1600V 20A | |||||
|
DF75AA160
1600V | 75A | 100°C | 4100A2s | 910/1000A | 1,40V
|
1600V | 75A | 100°C | 4100A2s | 910/1000A | 1,40V | Power Module 3-PHASE Diode 1600V 75A |
|
DF60NB160
1600V | 60A | 110°C | 26000A2s | 730/800A | 1.08V
|
1600V | 60A | 110°C | 26000A2s | 730/800A | 1.08V | 3-PHASE Diode Df-nb 1600V 60A Isolated Sip Pkg Pins In Line |
