FRS300CA50

FRS300CA50


  • Contact us
    • Certifications title
    Certificazione RoHs

    Diode Fast Recovery Diode

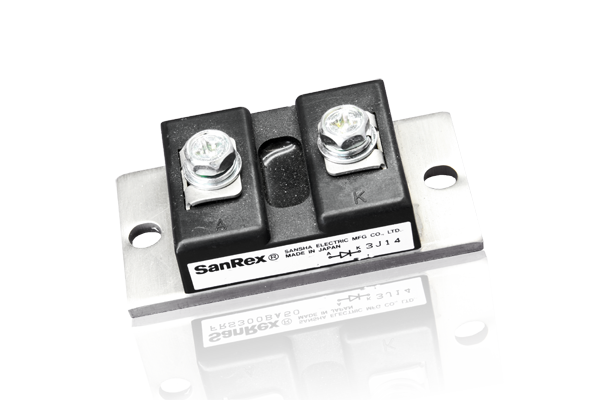

    POWER MODULE FAST RECOVERY DIODE 500V 300A

    Documentation

    • Type
      Diode Fast Recovery Diode
    • Brand name
      Sanrex
    • Vrrm [V]
      500V
    • Ifa[A]
      300A
    • Tc [°C]
      116°C
    • I2t
      66600A2s
    • Ifsm
      4000A
    • Vfm
      1.3V
    • Data sheet
      download FRS300CA50.pdf
    • Other related articles
      POWER COMPONENTS

    Sanrex

    Diode -> Fast Recovery Diode

    Fast recovery diodes are used in switching power supply circuits used in DC/DC converters, power factor correction circuits, motor control and other high switching speed PWM applications where are often required diodes capable of quickly restoring an operating point. "Fast" and "ultrafast" diodes are so called because they stop conducting current in the opposite direction very quickly. "Soft" is a term applied to a subset of always-fast rectifiers that restore the non-conducting state rapidly, but non-abruptly.

    Image Code Vrrm [V] Ifa[A] Tc [°C] I2t Ifsm Vfm
    rRVYeX5ovJJi6t1 DKR200AB60

    600V
    |
    200A
    |
    133°C
    |
    54000A2s
    |
    3600A
    |
    1,40V

    		 600V 200A 133°C 54000A2s 3600A 1,40V POWER MODULE FAST RECOVERY DIODE 600V 100A
    DKR300AB60

    600V
    |
    300A
    |
    124°C
    |
    54000A2s
    |
    3600A
    |
    1,40V

    		 600V 300A 124°C 54000A2s 3600A 1,40V POWER MODULE FAST RECOVERY DIODE 600V 150A
    DKR400AB60

    600V
    |
    200A
    |
    122°C
    |
    150000A2s
    |
    6000A
    |
    1,40V

    		 600V 200A 122°C 150000A2s 6000A 1,40V POWER MODULE FAST RECOVERY DIODE 600V 200A
    upsirZkKkkakKyL FRS400CA120R

    1200V
    |
    400A
    |
    78°C
    |
    66640A2s
    |
    4000A
    |
    1.8V

    		 1200V 400A 78°C 66640A2s 4000A 1.8V POWER MODULE FAST RECOVERY DIODE 1200V 400A
    FRS400EA200

    2000V
    |
    400A
    |
    79°C
    |
    104000A2s
    |
    5000A
    |
    2.2V

    		 2000V 400A 79°C 104000A2s 5000A 2.2V POWER MODULE FAST RECOVERY DIODE 2000V 400A
    RoXibtgyd4nqNar FRS150BA50

    500V
    |
    150A
    |
    85°C
    |
    37500A2s
    |
    3000A
    |
    1.3V

    		 500V 150A 85°C 37500A2s 3000A 1.3V POWER MODULE FAST RECOVERY DIODE 500V 150A
    FRS300BA50

    500V
    |
    300A
    |
    85°C
    |
    66600A2s
    |
    4000A
    |
    1.3V

    		 500V 300A 85°C 66600A2s 4000A 1.3V POWER MODULE FAST RECOVERY DIODE 500V 300A
    FRS300CA50

    500V
    |
    300A
    |
    116°C
    |
    66600A2s
    |
    4000A
    |
    1.3V

    		 500V 300A 116°C 66600A2s 4000A 1.3V POWER MODULE FAST RECOVERY DIODE 500V 300A
    FRS400BA60

    600V
    |
    400A
    |
    94°C
    |
    66640A2s
    |
    4000A
    |
    1,40V

    		 600V 400A 94°C 66640A2s 4000A 1,40V POWER MODULE FAST RECOVERY DIODE 600V 400A
    rkvwm7SoXqXRBoS FRS200BA60

    600V
    |
    200A
    |
    94°C
    |
    45000A2s
    |
    3300A
    |
    1.3V

    		 600V 200A 94°C 45000A2s 3300A 1.3V POWER MODULE FAST RECOVERY DIODE 600V 200A
    HjRwB5v5TLTnmyO DMG60UL20

    200V
    |
    60A
    |
    105°C
    |
    3375A2s
    |
    900A
    |
    1.05V

    		 200V 60A 105°C 3375A2s 900A 1.05V Fast Recovery Diode 200V 60A Non Isolated Pk
    odokQYXA05rd3EN DBA200YA40

    400V
    |
    2X100A
    |
    89°C
    |
    5000A2s
    |
    1000/1100A
    |
    1,20V

    		 400V 2X100A 89°C 5000A2s 1000/1100A 1,20V Power Module Fast Soft Recovery Diode 400V 2x100A
    dwwhc8xCCoEBYau FRD100CA120

    1200V
    |
    100A
    |
    78°C
    |
    16600A2s
    |
    2000A
    |
    1.80V

    		 1200V 100A 78°C 16600A2s 2000A 1.80V POWER MODULE FAST RECOVERY DIODE 1200V 100A
    FyQsdJBOU9iqyoM DKR200BE60

    600V
    |
    200A
    |
    120°C
    |
    54000A2s
    |
    3600/3200A
    |
    1.14V

    		 600V 200A 120°C 54000A2s 3600/3200A 1.14V Power Module Fast Recovery Diode 600V 100A
    n7pteayfAWdt3 DBA200ZA20

    200V
    |
    2X100A
    |
    98°C
    |
    5000A2s
    |
    1000/1100A
    |
    1.0V

    		 200V 2X100A 98°C 5000A2s 1000/1100A 1.0V POWER MODULE FAST RECOVERY DIODE 200V 2x100A
