    DOB Series 230 Vac

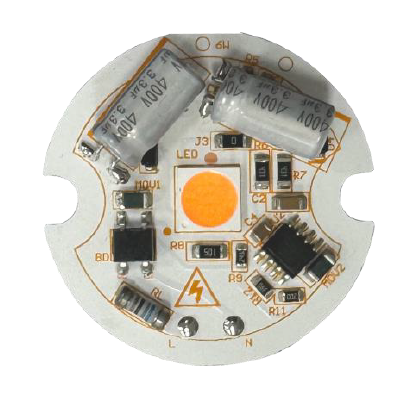

    DOB III AC Module Ø38mm 230VAC 2700/3000/4000K 4/6/8W 120° CRI90 Flicker<10% New

    Documentation

    Edison Opto Corporation Ltd.

    DOB Series 230 Vac

    Compared with DC LED modules, DOB(driver on board) Series module doesn't need to connect external driver so that it can help to reduce the circuit cost and the size of luminaires. It is more convenient for luminaire design with DOB Series module. Users can adjust the brightness of LED lamps easily with Smart lighting dimming system.

    Image Code Colour CCT[°K;nm] Power [W] CRI Size[mm]
    MOxUMCGpDQ4ezxD 5ELACN3T23xxxx16

    White
    |
    2700-4000K
    |
    12-15W
    |
    90
    |
    Ø57mm

    		 White 2700-4000K 12-15W 90 Ø57mm DOB III AC Module Ø57mm 230VAC 2700-4000K 12-15W 120° CRI>90 Flicker <10%
    n6-h4kbNrGGj8 5ELACN3T23082722

    Warm White
    |
    2700°K
    |
    8W
    |
    80
    |
    Ø38mm

    		 Warm White 2700°K 8W 80 Ø38mm
    5ELACN3T23083023

    Warm White
    |
    3000K
    |
    8W
    |
    90
    |
    Ø38mm

    		 Warm White 3000K 8W 90 Ø38mm DOB III AC Module Ø38mm 230VAC 3000K 8W 610-680lm 120° CRI>90 Flicker <10%
    nMpUSjp_boOLi 5ELACN3T2300XXX1X

    Warm White
    |
    2700-4000K
    |
    4-5W
    |
    80/90
    |
    Ø34mm

    		 Warm White 2700-4000K 4-5W 80/90 Ø34mm DOB III AC Module Ø34mm 230VAC 2700-4000K 4-5W 120° CRI80-90 Flicker <10%
    5ELACN3T23103013

    Warm White
    |
    3000K
    |
    10W
    |
    90
    |
    Ø47mm

    		 Warm White 3000K 10W 90 Ø47mm DOB III AC Module Ø47mm 230VAC 3000K 10W 930-103
    nVh1cVewG5q54 2DBACE8012123001

    Warm White
    |
    3000K
    |
    12W
    |
    80
    |
    Ø60mm

    		 Warm White 3000K 12W 80 Ø60mm EdiPower III Flip chip DOB Ø60mm 12W
    nZNRN8XXZYkfv 2DBACE8012303001

    Warm White
    |
    3000K
    |
    30W
    |
    80
    |
    Ø90mm

    		 Warm White 3000K 30W 80 Ø90mm EdiPower III Flip chip DOB Ø90mm 30W
    nYxH5RxsDP28S 5DATCNX0230XXX04

    CW/NW/WW
    |
    2700-6500K
    |
    6-8-10W
    |
    80/90
    |
    Ø47mm

    		 CW/NW/WW 2700-6500K 6-8-10W 80/90 Ø47mm DOB III AC Module Ø47mm 230VAC 2700-6500K CRI>80 Flicker <10%
    nh9P7tuOU_T0E 5ELACN3T2308xx29

    White
    |
    2700-4000K
    |
    8W
    |
    80
    |
    Ø38mm

    		 White 2700-4000K 8W 80 Ø38mm DOB III AC Module Ø38mm 230VAC 2700-4000K 8W 120° CRI>80 Flicker<10% New
    5ELACN3T23xxxx26

    White
    |
    2700/3000/4000K
    |
    4/6/8W
    |
    90
    |
    Ø38mm

    		 White 2700/3000/4000K 4/6/8W 90 Ø38mm DOB III AC Module Ø38mm 230VAC 2700/3000/4000K 4/6/8W 120° CRI90 Flicker<10% New
    ndqU8oic5aNv- 5ELACN3T23XXXX24

    CW/NW/WW
    |
    2700-5700K
    |
    6~12W
    |
    90
    |
    Ø47mm

    		 CW/NW/WW 2700-5700K 6~12W 90 Ø47mm DOB III AC Module Ø47mm 230VAC 2700~5700K 6~12W 120° CRI90 Flicker<10% New
