Edison Opto Corporation Ltd.

DOB Series 230 Vac

Compared with DC LED modules, DOB(driver on board) Series module doesn't need to connect external driver so that it can help to reduce the circuit cost and the size of luminaires. It is more convenient for luminaire design with DOB Series module. Users can adjust the brightness of LED lamps easily with Smart lighting dimming system.

Image	Code	Colour	CCT[°K;nm]	Power [W]	CRI	Size[mm]
	5ELACN3T2312xx16 CW/NW/WW | 2700-6500K | 12W | 90 | Ø57mm	CW/NW/WW	2700-6500K	12W	90	Ø57mm	DOB III AC Module Ø57mm 230VAC 2700-4000K 12W 120° CRI>90 Flicker <10%

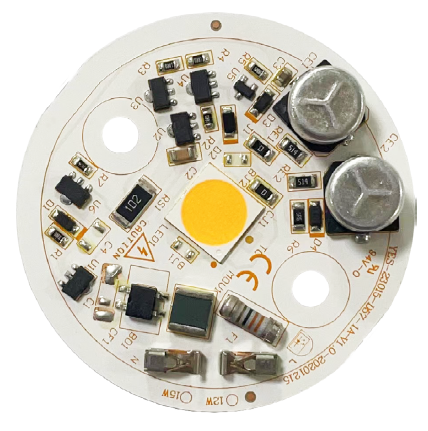

	5ELACN3T2315xx16 Warm White | 2700-4000K | 15W | 90 | Ø57mm	Warm White	2700-4000K	15W	90	Ø57mm	DOB III AC Module Ø57mm 230VAC 2700-4000K 15W 120° CRI>90 Flicker <10%
	5ELACN3T23082722 Warm White | 2700°K | 8W | 80 | Ø38mm	Warm White	2700°K	8W	80	Ø38mm
	5ELACN3T23083023 Warm White | 3000K | 8W | 90 | Ø38mm	Warm White	3000K	8W	90	Ø38mm	DOB III AC Module Ø38mm 230VAC 3000K 8W 610-680lm 120° CRI>90 Flicker <10%
	5ELACN3T2300XXX1X Warm White | 2700-4000K | 4-5W | 80/90 | Ø34mm	Warm White	2700-4000K	4-5W	80/90	Ø34mm	DOB III AC Module Ø34mm 230VAC 2700-4000K 4-5W 120° CRI80-90 Flicker <10%
	5ELACN3T23103013 Warm White | 3000K | 10W | 90 | Ø47mm	Warm White	3000K	10W	90	Ø47mm	DOB III AC Module Ø47mm 230VAC 3000K 10W 930-103
	2DBACE8012123001 Warm White | 3000K | 12W | 80 | Ø60mm	Warm White	3000K	12W	80	Ø60mm	EdiPower III Flip chip DOB Ø60mm 12W
	2DBACE8012303001 Warm White | 3000K | 30W | 80 | Ø90mm	Warm White	3000K	30W	80	Ø90mm	EdiPower III Flip chip DOB Ø90mm 30W
	5DATCNX0230XXX04 CW/NW/WW | 2700-6500K | 6-8-10W | 80/90 | Ø47mm	CW/NW/WW	2700-6500K	6-8-10W	80/90	Ø47mm	DOB III AC Module Ø47mm 230VAC 2700-6500K CRI>80 Flicker <10%
