5ELACN3T23083023

DOB Series 230 Vac

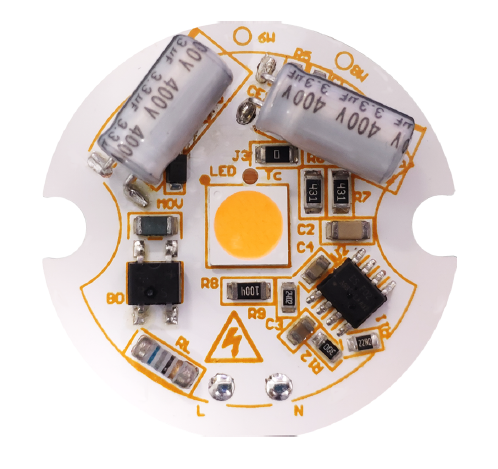

DOB III AC Module Ø38mm 230VAC 3000K 8W 610-680lm 120° CRI>90 Flicker <10%

Documentation

Type

DOB Series 230 Vac
Brand name

Edison Opto Corporation Ltd.
Colour

Warm White
CCT[°K;nm]

3000K
Power [W]

8W
CRI

90
Size[mm]

Ø38mm
Data sheet

Edison_Opto_DOB_III_AC_Module_D38_230V_LF_Eng_V1_3-RD-01-P0266_.pdf
Other related articles

DOB 230 Vac
Contact us

Edison Opto Corporation Ltd.

DOB Series 230 Vac

Compared with DC LED modules, DOB(driver on board) Series module doesn't need to connect external driver so that it can help to reduce the circuit cost and the size of luminaires. It is more convenient for luminaire design with DOB Series module. Users can adjust the brightness of LED lamps easily with Smart lighting dimming system.

Code	Colour	CCT[°K;nm]	Power [W]	CRI	Size[mm]
5ELACN3T2312xx16 CW/NW/WW \| 2700-6500K \| 12W \| 90 \| Ø57mm	CW/NW/WW	2700-6500K	12W	90	Ø57mm
5ELACN3T2315xx16 Warm White \| 2700-4000K \| 15W \| 90 \| Ø57mm	Warm White	2700-4000K	15W	90	Ø57mm
5ELACN3T23082722 Warm White \| 2700°K \| 8W \| 80 \| Ø38mm	Warm White	2700°K	8W	80	Ø38mm
5ELACN3T23083023 Warm White \| 3000K \| 8W \| 90 \| Ø38mm	Warm White	3000K	8W	90	Ø38mm
5ELACN3T2300XXX1X Warm White \| 2700-4000K \| 4-5W \| 80/90 \| Ø34mm	Warm White	2700-4000K	4-5W	80/90	Ø34mm
5ELACN3T23103013 Warm White \| 3000K \| 10W \| 90 \| Ø47mm	Warm White	3000K	10W	90	Ø47mm
2DBACE8012123001 Warm White \| 3000K \| 12W \| 80 \| Ø60mm	Warm White	3000K	12W	80	Ø60mm
2DBACE8012303001 Warm White \| 3000K \| 30W \| 80 \| Ø90mm	Warm White	3000K	30W	80	Ø90mm
5DATCNX0230XXX04 CW/NW/WW \| 2700-6500K \| 6-8-10W \| 80/90 \| Ø47mm	CW/NW/WW	2700-6500K	6-8-10W	80/90	Ø47mm
