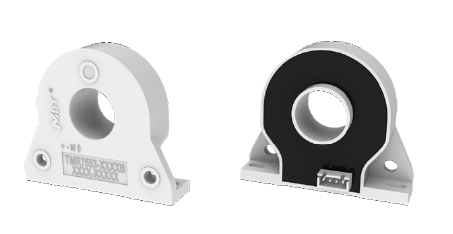

TMR7553-B

Sensors related products TMR Current sensors modules

Unibody Precision Current Sensor 100-300A 100khz Vcc +/-12/20V

Documentation

Type

Sensors related products TMR Current sensors modules
Brand name

Multi Dimension Technology
VF[V]

±15V
Current sensing range

100-300A
Sensibilità

500μA/A
Isteresi

±100μA
Operating temperature

-40° ~ +85°C
Data sheet

MDT-Current-Sensors-TMR7553-B-Datasheet-EN-V1.1.1.pdf
Contact us

Multi Dimension Technology

Sensors related products -> TMR Current sensors modules

The Hall effect sensor is a component capable of detecting the generated magnetic field and the voltage difference, producing an output signal suitably converted into a standard according to the requirements of the electronic system.

Code	VF[V]	Current sensing range	Sensibilità	Isteresi	Operating temperature
TMR7551-B ±15/±24V \| 1000A \| 0.2mA/A \| ±0.3mA \| -40° ~ +85°C	±15/±24V	1000A	0.2mA/A	±0.3mA	-40° ~ +85°C
TMR7556-B ±12/±20V \| 300A \| 500μA/A \| ±300μA \| -40° ~ +85°C	±12/±20V	300A	500μA/A	±300μA	-40° ~ +85°C
TMR7503-B ±15V \| 50-600A \| 6.67-80mV/A \| ±10mV \| -40° ~ +105°C	±15V	50-600A	6.67-80mV/A	±10mV	-40° ~ +105°C
TMR7503-C 12V \| 50-600A \| 1.041-12.500mV/A \| ±5mV \| -40° ~ +105°C	12V	50-600A	1.041-12.500mV/A	±5mV	-40° ~ +105°C
USB2705A USB MAGNETOMETER Axial Low-Field -50 Oe to 50 Oe	USB MAGNETOMETER Axial Low-Field -50 Oe to 50 Oe
TMR7302-E 3.3-5V \| ±50/±250A \| Check datasheet \| Check datasheet \| -40° ~ +125°C	3.3-5V	±50/±250A	Check datasheet	Check datasheet	-40° ~ +125°C
TMR7303-D/P1 5V \| 10-120A \| Check datasheet \| Check datasheet \| -40° ~ +105°C	5V	10-120A	Check datasheet	Check datasheet	-40° ~ +105°C
TMR7506-B ±15V \| 50-600A \| 6.67-80mV/A \| ±10mV \| -40° ~ +85°C	±15V	50-600A	6.67-80mV/A	±10mV	-40° ~ +85°C
TMR7616-C 3.3-5V \| ±20/±65A \| Check datasheet \| ±10mV \| -40° ~ +125°C	3.3-5V	±20/±65A	Check datasheet	±10mV	-40° ~ +125°C
TMR7553-B ±15V \| 100-300A \| 500μA/A \| ±100μA \| -40° ~ +85°C	±15V	100-300A	500μA/A	±100μA	-40° ~ +85°C
