TMR7503-C

Certifications title

Sensors related products TMR Current sensors modules

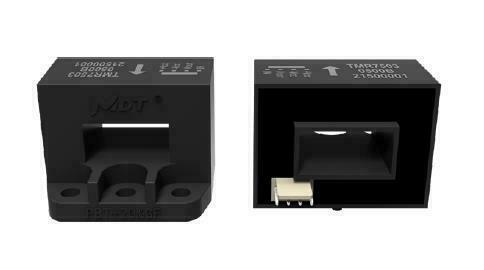

Unibody Low Temperature-Drift Current Sensor 50～600A Vcc 12V

Documentation

Type

Sensors related products TMR Current sensors modules
Brand name

Multi Dimension Technology
Supply Voltage[V]

12V
Current sensing range

50 - 600A
Sensibilità

1.041-12.500mV/A
Isteresi

±5mV
Operating temperature

-40° ~ +105°C
Data sheet

MDT-TMR7503-C.pdf

Multi Dimension Technology

Sensors related products -> TMR Current sensors modules

The Hall effect sensor is a component capable of detecting the generated magnetic field and the voltage difference, producing an output signal suitably converted into a standard according to the requirements of the electronic system.

Code	Supply Voltage[V]	Current sensing range	Sensibilità	Isteresi	Operating temperature
TMR7551-B ±15/±24V \| 1000 - 1500A \| 0.2mA/A \| ±0.3mA \| -40° ~ +85°C	±15/±24V	1000 - 1500A	0.2mA/A	±0.3mA	-40° ~ +85°C	Unibody Precision Current Sensor 1000-1500A 100khz Vcc +/-15/24V
TMR7556-B ±12/±20V \| ±600A \| 500μA/A \| ±300μA \| -40° ~ +85°C	±12/±20V	±600A	500μA/A	±300μA	-40° ~ +85°C	Unibody precision hall effect current sensor
TMR7503-B ±15V \| 50 - 600A \| 6.67-80mV/A \| ±10mV \| -40° ~ +105°C	±15V	50 - 600A	6.67-80mV/A	±10mV	-40° ~ +105°C	Unibody Low Temperature-Drift Current Sensor 50A~600A Vcc 15V
TMR7503-C 12V \| 50 - 600A \| 1.041-12.500mV/A \| ±5mV \| -40° ~ +105°C	12V	50 - 600A	1.041-12.500mV/A	±5mV	-40° ~ +105°C	Unibody Low Temperature-Drift Current Sensor 50～600A Vcc 12V
USB2705A USB MAGNETOMETER Axial Low-Field -50 Oe to 50 Oe	USB MAGNETOMETER Axial Low-Field -50 Oe to 50 Oe
TMR7302-E 3.3-5V \| 50 - 250A \| Check datasheet \| Check datasheet \| -40° ~ +125°C	3.3-5V	50 - 250A	Check datasheet	Check datasheet	-40° ~ +125°C	Open loop Integrated Current Sensor 50A~250A 5V
TMR7303-D/P1 5V \| ±25A ~ ±300A \| Check datasheet \| Check datasheet \| -40° ~ +105°C	5V	±25A ~ ±300A	Check datasheet	Check datasheet	-40° ~ +105°C	Unibody, Miniture Current Sensor Measuring Range ±25A~±300A
TMR7506-B ±15V \| ±150A ~ ±1000A \| 6.67-80mV/A \| ±10mV \| -40° ~ +85°C	±15V	±150A ~ ±1000A	6.67-80mV/A	±10mV	-40° ~ +85°C	Unibody Low Temperature Coefficient Current Sensor
TMR7616-C 3.3-5V \| ±20A ~ ±65A \| Check datasheet \| ±10mV \| -40° ~ +125°C	3.3-5V	±20A ~ ±65A	Check datasheet	±10mV	-40° ~ +125°C	Current Sensor IC 16-pin SOPW 20-65A 3.3/5V -40 125 °C
