OBO-40008F-01

Certifications title

Buzzer Mylar Speaker >Ø40mm and <Ø50mm

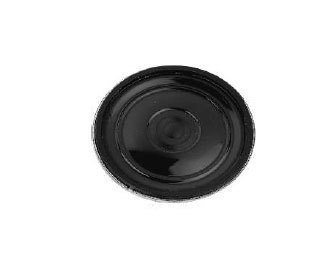

MYLAR SPEAKER Ø40mm 8 ohm 200mW Frequency 350~8000Hz

Documentation

Type

Buzzer Mylar Speaker >Ø40mm and <Ø50mm
Brand name

Obo Pro.2
Power [W]

0,2W
Impedenza

8Ω
dB

80
Dimension [mm;mt]

Ø40mm
Data sheet

OBO-40008F-01.pdf

Obo Pro.2

Buzzer -> Mylar Speaker -> >Ø40mm and <Ø50mm

Mylar speaker is a kind of micro speaker unit that uses a diaphragm made of Mylar material. Mylar speakers have an ultra-thin design and a light and clear voice. Widely used in building security industry, automotive electronics, medical devices, mobile internet devices, etc.

Code	Power [W]	Impedenza	dB	Dimension [mm;mt]
OBO-40008F-01 0,2W \| 8Ω \| 80 \| Ø40mm	0,2W	8Ω	80	Ø40mm	MYLAR SPEAKER Ø40mm 8 ohm 200mW Frequency 350~8000Hz
OBO-40008F-03 0,5W \| 8Ω \| 84 \| Ø40mm	0,5W	8Ω	84	Ø40mm	MYLAR SPEAKER Ø40mm 8 ohm 500mW Frequency 350~5800Hz
OBO-40008F-04 1W \| 8Ω \| 87 \| Ø40mm	1W	8Ω	87	Ø40mm	MYLAR SPEAKER Ø40mm 8 ohm 1000mW Frequency 350~5000Hz
OBO-40008F-27 2W \| 8Ω \| 86 \| Ø40mm	2W	8Ω	86	Ø40mm	MYLAR SPEAKER Ø40mm 8ohm 2W Frequency 350~5000Hz
OBO-40032F-01 0,2W \| 32Ω \| 80 \| Ø40mm	0,2W	32Ω	80	Ø40mm	MYLAR SPEAKER Ø40mm 32ohm 0,2~0,5W Frequency 320~6500Hz
OBO-40016F-05 0,5W \| 16Ω \| 86 \| Ø40mm	0,5W	16Ω	86	Ø40mm	DYNAMIC SPEAKER 16Ohm 40x5mm
OBO-45008F 5W \| 8Ω \| 81 \| Ø45mm	5W	8Ω	81	Ø45mm	DYNAMIC SPEAKER Ø45mm 8 ohm 5W-10W Frequency 350~10.000Hz
OBO-62008G-01 10W \| 8Ω \| 72 \| Ø45mm	10W	8Ω	72	Ø45mm	DYNAMIC SPEAKER Ø45mm 8 ohm 5W-10W Frcy 350~10,000Hz
OBO-40204F-01 5W \| 4Ω \| 84 \| Ø42mm	5W	4Ω	84	Ø42mm	Dynamic Speaker Ø42 4ohm 85dB Min at 3m
OBO-40008F 8W \| 8Ω \| 80 \| Ø40mm	8W	8Ω	80	Ø40mm	DYNAMIC SPEAKER Ø40mm 8 ohm 10W
