GSA75AA120

GSA75AA120

Power Module IGBT

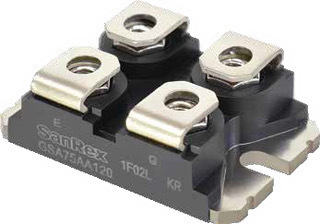

POWER SEMICONDUCTOR IGBT MODULE 1200V 75A

Documentation

Sanrex

Power Module -> IGBT

    Features

  • Standard SOT-227 compact package
  • Directly attachable to the heat sink
  • 2500V isolation voltage
  • RoHS compliant
  • 150°C maximum operating temperature
  • -40°C minimum operating temperature
  • 500W power dissipation
  • 20V maximum gate emitter voltage
  • SMD/SMT mounting style
  • 38.1mm × 25.3mm package
Image Code Vrrm [V] Ifa[A] Tc [°C] I2t Ifsm Vfm
XPXmPgjp7PHxU9O GCA100AA120

1200V
|
100A
|
25°C
|
-
|
-
|
-

 1200V 100A 25°C - - - Igbt Module 1200V 100A
GCA150AA120

1200V
|
150A
|
25°C
|
-
|
-
|
-

 1200V 150A 25°C - - - Igbt Module 1200V 150A
GCA200EA60

600V
|
200A
|
25°C
|
-
|
-
|
-

 600V 200A 25°C - - - Igbt Module 600V 200A
ijAEGwJ6bpB1b9e GSA75AA120

1200V
|
75A
|
69°C
|
-
|
-
|
-

 1200V 75A 69°C - - -
FwPCvbMOJnX1Xl9 GSA100AA60

600V
|
100A
|
113°C
|
-
|
-
|
-

 600V 100A 113°C - - -
