GSA100AA60

GSA100AA60

Certifications title

Certificazione RoHs

Certificazione UL

Power Module IGBT

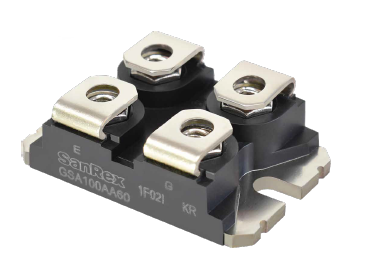

IGBT MODULE 600V 100A

Documentation

Type

Power Module IGBT
Brand name

Sanrex
Alternatives
- IXGN320N60A3
Vrrm [V]

600V
Ifa[A]

100A
Tc [°C]

113°C
I2t

-
Ifsm

-
Vfm

-
Data sheet

GSA100AA60.pdf

Outline_drawing__SOT-227_GSA_.pdf

2022_Spring_SanRex_Quarterly_News.pdf

Sanrex

Power Module -> IGBT

Features

Standard SOT-227 compact package
Directly attachable to the heat sink
2500V isolation voltage
RoHS compliant
150°C maximum operating temperature
-40°C minimum operating temperature
500W power dissipation
20V maximum gate emitter voltage
SMD/SMT mounting style
38.1mm × 25.3mm package

Image	Code	Vrrm [V]	Ifa[A]	Tc [°C]	I2t	Ifsm	Vfm
	GCA100AA120 1200V \| 100A \| 25°C \| - \| - \| -	1200V	100A	25°C	-	-	-	Igbt Module 1200V 100A
	GCA150AA120 1200V \| 150A \| 25°C \| - \| - \| -	1200V	150A	25°C	-	-	-	Igbt Module 1200V 150A
	GCA200EA60 600V \| 200A \| 25°C \| - \| - \| -	600V	200A	25°C	-	-	-	Igbt Module 600V 200A
	GSA100AA60 600V \| 100A \| 113°C \| - \| - \| -	600V	100A	113°C	-	-	-	IGBT MODULE 600V 100A
	GSA75AA120 1200V \| 75A \| 69°C \| - \| - \| -	1200V	75A	69°C	-	-	-	POWER SEMICONDUCTOR IGBT MODULE 1200V 75A
