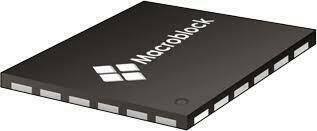

MBI6034Q

MBI6034Q


  • Contact us

    • LED Drivers RGB Led Driver
    PWM-Embedded 3x4 CH. C.C. Sink Driver w/ Error Detection AEC-Q100 G.1

    Documentation

    • Type
      LED Drivers RGB Led Driver
    • Brand name
      Macroblock Inc.
    • Supply Voltage[V]
      3.3-5.0V
    • Output Ch.
      3x4
    • Const.Output Current Range/Ch.
      150mA
    • Time-multiplexing
      -
    • Package
      QFN24L-4x4-0.5
    • Data sheet
      download MBI6034Q_Datasheet_VA.00-EN_--.pdf
