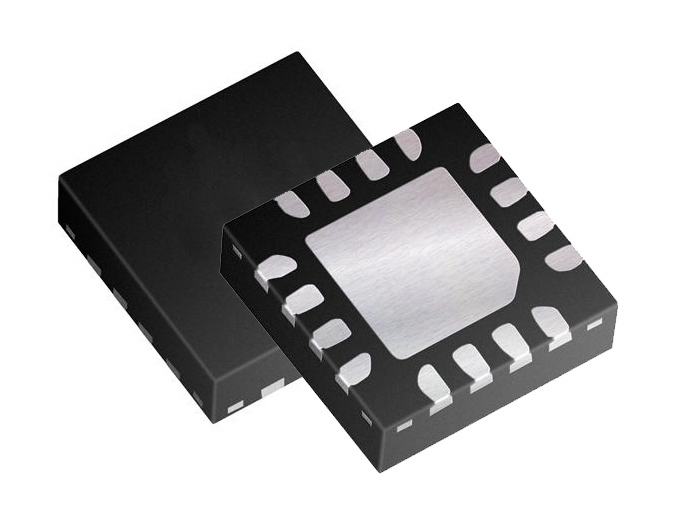

MBI6027

MBI6027

LED Drivers RGB Led Driver
PWM-Embedded 3-Channel Constant Current LED Sink Driver with Bi-directional Transmission

Documentation

  • Type
    LED Drivers RGB Led Driver
  • Brand name
    Macroblock Inc.
  • Supply Voltage [V]
  • Output Ch.
    3
  • Const.Output Current Range/Ch.
    5-45mA
  • Time-multiplexing
    -
  • Package
    QFN24
  • Data sheet
    download MBI6027.pdf
  • Variants
    MBI6027GFN
    Package QFN24L-4*4-0.5
  • Other related articles
    DRIVERS FOR LIGHTING

  • Contact us

Macroblock Inc.

LED Drivers -> RGB Led Driver

RGB LED drivers for LED strip, mesh display, architectural lighting, and backlight & lighting solutions for consumer electronics.

Image Code Supply Voltage[V] Output Ch. Const.Output Current Range/Ch. Time-multiplexing Package
GwSLGUj8lSlUh4j MBI6020

3-5.5V
|
3
|
5-50mA
|
-
|
SSOP16, QFN16

 3-5.5V 3 5-50mA - SSOP16, QFN16
MBI6024

3-5.5V
|
3x4
|
3-45mA
|
-
|
SSOP24, QFN24

 3-5.5V 3x4 3-45mA - SSOP24, QFN24
MBI6030

5V,7-30V
|
3
|
5-150mA
|
-
|
SSOP16, QFN24

 5V,7-30V 3 5-150mA - SSOP16, QFN24
MBI6034

3
|
150mA
|
-
|
SSOP24, TSSOP24, QFN24

 3 150mA - SSOP24, TSSOP24, QFN24
MBI6120

4.5-17V
|
3
|
3-20mA
|
-
|
SOP8

 4.5-17V 3 3-20mA - SOP8
VhruUpzbkedoUFu MBI6027

3
|
5-45mA
|
-
|
QFN24

 3 5-45mA - QFN24
BhPOeMKSBvpz16r MBI6023

3-5.5V
|
3x4
|
3-45mA
|
-
|
SSOP24, QFN24

 3-5.5V 3x4 3-45mA - SSOP24, QFN24
MBI6033

3-5,5 - 6-24V
|
3x4
|
3-45mA
|
-
|
SSOP24, GTS, GFN

 3-5,5 - 6-24V 3x4 3-45mA - SSOP24, GTS, GFN
nQixzsXVsx1Gp MBI6034Q

3.3-5.0V
|
3x4
|
150mA
|
-
|
QFN24L-4x4-0.5

 3.3-5.0V 3x4 150mA - QFN24L-4x4-0.5
