    COB

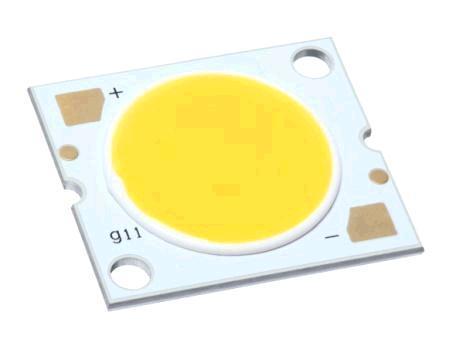

    COB 19x18 1000lm 350 mA 28V 120° CRI>80 10-17W Ø11mm 4000°K

    Documentation

    • Type
      COB
    • Brand name
      TSMC
    • Colour
      White
    • CCT[°K]
      4000K
    • Power [W]
      10-17W
    • IF[mA]
      350mA
    • CRI
      80
    • Dimension [mm;mt]
      19x18mm
    • Data sheet

    TSMC

    COB

    Image Code Colour CCT[°K] Power [W] IF[mA] CRI Dimension [mm;mt]
    RnfnM29BD77EfE2 TMEXCX

    Cold White
    |
    5000K
    |
    10-17W
    |
    350mA
    |
    80
    |
    19x18mm

    		 Cold White 5000K 10-17W 350mA 80 19x18mm COB 19x18 1040lm 350 mA 28V 120° CRI>80 10-17W Ø11mm 5000°K
    TMEXNX

    White
    |
    4000K
    |
    10-17W
    |
    350mA
    |
    80
    |
    19x18mm

    		 White 4000K 10-17W 350mA 80 19x18mm COB 19x18 1000lm 350 mA 28V 120° CRI>80 10-17W Ø11mm 4000°K
    TMEXWX

    Warm White
    |
    3000K
    |
    10-17W
    |
    350mA
    |
    80
    |
    19x18mm

    		 Warm White 3000K 10-17W 350mA 80 19x18mm COB 19x18 950lm 350 mA 28V 120° CRI>80 10-17W Ø11mm 3000°K
