Diode Isolated module diode
POWER MODULE INVERTER SERIES 800V 20A
Documentation
-
TypeDiode Isolated module diode
-
Brand nameSanrex
-
Vrrm [V]800V
-
Ifa[A]20A
-
Tc [°C]101°C
-
I2t840A2S
-
Ifsm410/450A
-
Vfm1.65V
-
Data sheet
Sanrex
Diode -> Isolated module diode

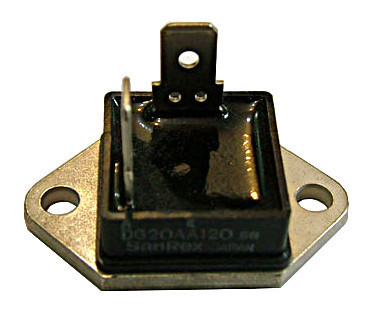

DG20AA is a medium power isolated module diode suitable for wide range of industrial and home elctronics use. DG20AA is highly reliable by glass pasivation.
| Image | Code | Vrrm [V] | Ifa[A] | Tc [°C] | I2t | Ifsm | Vfm | |
|---|---|---|---|---|---|---|---|---|
|
DG20AA80
800V | 20A | 101°C | 840A2S | 410/450A | 1.65V
|
800V | 20A | 101°C | 840A2S | 410/450A | 1.65V | POWER MODULE INVERTER SERIES 800V 20A |
