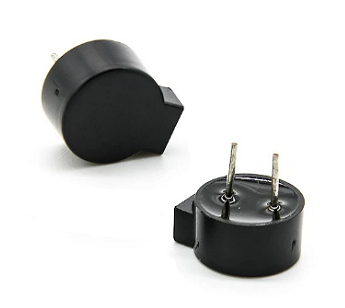

    Buzzer Piezoelectric Buzzer With External Drive
    Piezo Buzzer 80db at 5.0Khz/ 9Vp-p Square Wave ø10.5x4mm Without Driver

    Documentation

    • Type
      Buzzer Piezoelectric Buzzer With External Drive
    • Brand name
      Obo Pro.2
    • Frequenza [Hz]
      5.0kHz
    • Tono
      -
    • dB
      80
    • Voltage[V]
      9V
    • Dimension [mm;mt]
      Ø10.5x4mm
    • Data sheet
      download OBO-11250PB.pdf
    • Other related articles
      BUZZER & SPEAKER

    Obo Pro.2

    Buzzer -> Piezoelectric Buzzer -> With External Drive

    Buzzer piezoelettrico con oscillatore esterno

    Image Code Frequenza [Hz] Tono dB Voltage[V] Dimension [mm;mt]
    xLvTKV4gJGhjyuL OBO-11250PA

    5.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø10.5x8mm

    		 5.0kHz - 80 9V Ø10.5x8mm Buzzer 80db at 5.0Khz/ 9Vp-p Square Wave ø10.5x4mm Without Driver
    OBO-11250PB

    5.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø10.5x4mm

    		 5.0kHz - 80 9V Ø10.5x4mm Piezo Buzzer 80db at 5.0Khz/ 9Vp-p Square Wave ø10.5x4mm Without Driver
    GEsmpCfb7KNpXbQ OBO-14240PA

    4.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø14x7.5mm

    		 4.0kHz - 80 9V Ø14x7.5mm Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave ø14x7.5mm Without Driver
    OBO-14240PC

    4.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø14x7.5mm

    		 4.0kHz - 80 9V Ø14x7.5mm Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave ø14x7.5mm Without Driver
    TAUdtjkQbZrX0a5 OBO-152

    4.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø16.5x4mm

    		 4.0kHz - 80 9V Ø16.5x4mm Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø16.5x4mm Without Driver
    xJXJtTTkoc9siE2 OBO-20335

    3.4kHz
    |
    -
    |
    83
    |
    3 - 27V
    |
    Ø23,7x11mm

    		 3.4kHz - 83 3 - 27V Ø23,7x11mm BUZZER Ø23,7x11mm WITHOUT DRIVER
    ztFXm7Kog8OXX1b OBO-20235

    4.0kHz
    |
    -
    |
    85
    |
    9V
    |
    Ø24x5.5mm

    		 4.0kHz - 85 9V Ø24x5.5mm BUZZER Ø24mm WITH DRIVER LEAD WIRE
    OBO-272

    4.4kHz
    |
    -
    |
    90
    |
    9V
    |
    Ø30x5.5mm

    		 4.4kHz - 90 9V Ø30x5.5mm BUZZER Ø30 mm WITHOUT DRIVER WIRE
    tycoT09eMHsyRvX OBO-35T4

    0.8kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø44x14mm

    		 0.8kHz - 80 9V Ø44x14mm BUZZER Ø44x14mm 80dB at 800Hz 9V
    mfNFiTnMFh64Kxd OBO-13240

    4.1kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø12.6x7mm

    		 4.1kHz - 80 9V Ø12.6x7mm Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø12.6x7mm Without Driver
    OBO-13240PA-F01

    4.0kHz
    |
    -
    |
    80
    |
    5V
    |
    Ø12.5x7mm

    		 4.0kHz - 80 5V Ø12.5x7mm Buzzer 80db At 4.0Khz- 9Vp-p Square Wave Ø12.6x7mm Without Driver
    eeFoFLlojlpIMSz OBO-15230

    3.5kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø14x7.5mm

    		 3.5kHz - 80 9V Ø14x7.5mm Buzzer 80db At 3.5Khz- 9Vp-p Square Wave Ø14x7.5mm Without Driver
    lzRIg0R2TwSIokI OBO-15240PA

    4.0kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø17x8mm

    		 4.0kHz - 80 9V Ø17x8mm Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø17x8mm Without Driver
    jTNVLCHclprKGRO OBO-20205PA

    4.0kHz
    |
    -
    |
    85
    |
    9V
    |
    Ø22x8mm

    		 4.0kHz - 85 9V Ø22x8mm Buzzer 85db at 4.0Khz/ 9Vp-p Square Wave ø22x8mm Without Driver
    LCbTCyDAyGX3bIh OBO-27225

    2.5kHz
    |
    -
    |
    85
    |
    9V
    |
    Ø30x14.7mm

    		 2.5kHz - 85 9V Ø30x14.7mm BUZZER Ø30mm WITHOUT DRIVER P=15mm
    gAXbnrksM9L3QDV OBO-22240PA

    4.0kHz
    |
    -
    |
    90
    |
    12V
    |
    Ø22x12mm

    		 4.0kHz - 90 12V Ø22x12mm Mylar Speaker 90db at 4.0Khz/ 12Vp-p Square Wave ø22x12mm
    IxgrwxCGAgFXQCt OBO-50240

    0.7kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø48x2mm

    		 0.7kHz - 80 9V Ø48x2mm Piezoelectric Buzzer 80db min. at 700Hz / 9Vp-p Square Wave ø48x2mm with Wire
    nwquJMy8skQGt OBO-35T6-

    0.8kHz
    |
    -
    |
    80
    |
    9V
    |
    Ø44x11mm

    		 0.8kHz - 80 9V Ø44x11mm BUZZER Ø44x11mm 80dB at 800Hz 9V
    nAfAUlkBPkrXE OBO-30245-W

    4.5kHz
    |
    -
    |
    97
    |
    10V
    |
    Ø30x5.1mm

    		 4.5kHz - 97 10V Ø30x5.1mm Buzzer Ø30x5.1mm 97dB Min.at 4.5KHz/10.0Vp-pSquareWave/10cm w/wire
    n4KMY_xmxAAcZ OBO-09220SD

    2.0kHz
    |
    -
    |
    72
    |
    5V
    |
    9x9x2mm

    		 2.0kHz - 72 5V 9x9x2mm BUZZER 9x9x2mm 72dB Min. at 2.0 KHz/5.0V 13,000pF±30% at 1KHz
