MBI5368

MBI5368


  • Contact us
    • Certifications title
    Certificazione RoHs

    LED Drivers Led Lighting Driver

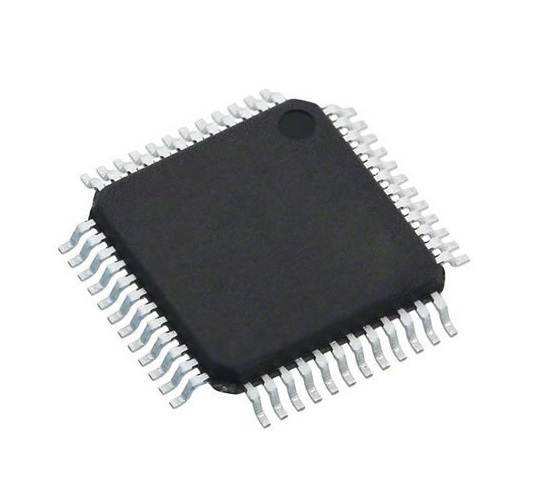

    LDRV 24CH CC GAIN LQFP

    Documentation

    • Type
      LED Drivers Led Lighting Driver
    • Brand name
      Macroblock Inc.
    • Supply Voltage[V]
      3.3-5.0V
    • Output Ch.
      3x8
    • Const.Output Current Range/Ch.
      10-60mA
    • Time-multiplexing
      -
    • Package
      LQFP48L-7x7-0.5
    • Data sheet
      download MBI5368.pdf

    Macroblock Inc.

    LED Drivers -> Led Lighting Driver

    With constant current technology, the All-Ways-On series features instant on/off control of LED drivers. By adjusting the output current through a registor and setting the LED brightness through the Pulse Width Modulation (PWM), the All-Ways-On series provides simple and reliable control of LED operation. Build-in thermal protection function is also added to the All-Ways-On series LED drivers to prevent ICs from overheating.

    Image Code Supply Voltage[V] Output Ch. Const.Output Current Range/Ch. Time-multiplexing Package
    gFuGryErCiYsqxM MBI1801

    5V
    |
    1
    |
    0.5 - 1.2A
    |
    -
    |
    TO-265

    		 5V 1 0.5 - 1.2A - TO-265 LED Driver 1Channel Constant Current PWL ALL-WAYS-ON SMD
    tJgnTc8ktq87cfY MBI1816

    5V
    |
    16
    |
    60mA
    |
    -
    |
    TSSOP20

    		 5V 16 60mA - TSSOP20 LED Driver 16Channel Constant Current PWL ALL-WAYS-ON
    bIcCtgi10GNIgvH MBI5368

    3.3-5.0V
    |
    3x8
    |
    10-60mA
    |
    -
    |
    LQFP48L-7x7-0.5

    		 3.3-5.0V 3x8 10-60mA - LQFP48L-7x7-0.5 LDRV 24CH CC GAIN LQFP
    52167488 MBI1802GD

    5V
    |
    2
    |
    360mA
    |
    -
    |
    SOP8L

    		 5V 2 360mA - SOP8L ALL-WAYS-ON HIGH POW
