CLEG-57D-F30W7-

Certifications title

DOB Series 230 Vac

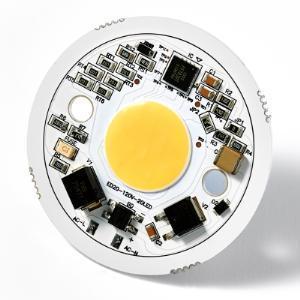

COB Module Warm White 3000°K 30W 2790lm 130° Ac Direct Module 220V

Documentation

Type

DOB Series 230 Vac
Brand name

Lumens
Colour

Warm White
CCT[°K;nm]

3000K
Power [W]

30W
CRI

>80
Size[mm]

Ø57mm
Data sheet

CLEG-57D-F30WXXX.pdf
Other related articles

DOB 230 Vac

Lumens

DOB Series 230 Vac

Compared with DC LED modules, DOB(driver on board) Series module doesn't need to connect external driver so that it can help to reduce the circuit cost and the size of luminaires. It is more convenient for luminaire design with DOB Series module. Users can adjust the brightness of LED lamps easily with Smart lighting dimming system.

Code	Colour	CCT[°K;nm]	Power [W]	CRI	Size[mm]
CLEG-57D-F10W7 Warm White \| 3000K \| 10W \| >80 \| Ø57mm	Warm White	3000K	10W	>80	Ø57mm	COB Module Warm White 3000°K 10W 930lm 130° Ac Direct Module 220V
CLEG-57D-F15W7- Warm White \| 3000K \| 15W \| >80 \| Ø57mm	Warm White	3000K	15W	>80	Ø57mm	COB Module Warm White 3000°K 15W 1320lm 130° Ac Direct Module 220V
CLEG-57D-F20W7- Warm White \| 3000K \| 20W \| >80 \| Ø57mm	Warm White	3000K	20W	>80	Ø57mm	COB Module Warm White 3000°K 20W 1800lm 130° Ac Direct Module 220V
CLEG-57D-F30W7- Warm White \| 3000K \| 30W \| >80 \| Ø57mm	Warm White	3000K	30W	>80	Ø57mm	COB Module Warm White 3000°K 30W 2790lm 130° Ac Direct Module 220V
EDC57C-10W-827-230VA Warm White \| 2700°K \| 10W \| >80 \| Ø57mm	Warm White	2700°K	10W	>80	Ø57mm	COB 57MM 2700°K 10W 230VAC 900lm 130° CRI>80 Ø57(Ø14)
EDC57C-10W-830-230VA Warm White \| 3000K \| 10W \| >80 \| Ø57mm	Warm White	3000K	10W	>80	Ø57mm	COB 57MM Warm White 3000°K 10W 230VAC 900lm 130° CRI>80 Ø57(Ø14)
EDC57C-15W-827-230VA Warm White \| 2700°K \| 15W \| >80 \| Ø57mm	Warm White	2700°K	15W	>80	Ø57mm	COB 57MM 2700°K 15W 230VAC 1350lm 130° Cri>80 Ø57(ø14)
EDC57C-15W-830-230VA Warm White \| 3000K \| 15W \| >80 \| Ø57mm	Warm White	3000K	15W	>80	Ø57mm	COB 57MM Warm White 3000°K 15W 230VAC 1350lm 130° Cri>80 Ø57(ø14)
EDC57C-20W-827-230VA Warm White \| 2700°K \| 20W \| >80 \| Ø57mm	Warm White	2700°K	20W	>80	Ø57mm	COB 57MM Warm White 3000°K 20W 230VAC 1790lm 130° CRI>80 Ø57(Ø14)
EDC57C-20W-930-230VA Warm White \| 3000K \| 20W \| >90 \| Ø57mm	Warm White	3000K	20W	>90	Ø57mm	COB 57MM 3000°K 20W 230VAC 1865lm 130° Cri>90 Les 14mm
EDC57C-30W-827-230VA Warm White \| 2700°K \| 30W \| >80 \| Ø57mm	Warm White	2700°K	30W	>80	Ø57mm	COB 57MM 2700°K 30W 230VAC 2820lm 130° CRI>80 Ø57(Ø21)
EDC57C-30W-830-230VA Warm White \| 3000K \| 30W \| >80 \| Ø57mm	Warm White	3000K	30W	>80	Ø57mm	COB 57MM Warm White 3000°K 30W 230VAC 2940lm 130° CRI>80 Ø57(Ø21)
EDC57C-30W-840-230VA Warm White \| 3000K \| 30W \| >80 \| Ø57mm	Warm White	3000K	30W	>80	Ø57mm	COB 57MM Natural White 4000°K 30W 230VAC 3115lm 130° CRI>80 Ø57(Ø21)
EDC57C-40W-840-230VA White \| 4000°K \| 40W \| >80 \| Ø57mm	White	4000°K	40W	>80	Ø57mm	COB 57MM Natural White 4000°K 40W 230VAC 3914lm 130° CRI>80 Ø57(Ø21)
EDC38C-4W-830-230VA Warm White \| 3000K \| 4W \| >80 \| Ø38mm	Warm White	3000K	4W	>80	Ø38mm	COB 38MM Warm White 3000°K 4W 230VAC 360lm 130° CRI>80 Ø38(Ø10mm)
EDC38C-4W-840-230VA White \| 4000°K \| 4W \| >80 \| Ø38mm	White	4000°K	4W	>80	Ø38mm	COB 38MM Natural White 4000°K 4W 230VAC 380lm 130° CRI>80 Ø38(Ø10mm)
EDC38C-4W-927-230VA Warm White \| 2700°K \| 4W \| >80 \| Ø38mm	Warm White	2700°K	4W	>80	Ø38mm	COB 38MM 2700°K 4W 230VAC 360lm 130° CRI>80 LES Ø38(Ø10mm)
EDC38C-6W-830-120VB Warm White \| 3000K \| 6W \| >80 \| Ø38mm	Warm White	3000K	6W	>80	Ø38mm	COB 38MM 3000°K 6W 120VAC 130° Cri>80 Les 9.9mm
EDC38C-6W-840-120VB White \| 4000°K \| 6W \| >80 \| Ø38mm	White	4000°K	6W	>80	Ø38mm	COB 38MM 4000°K 6W 120VAC 570lm 130° Cri>80 Les 9.9mm
EDC38C-6W-840-230VA White \| 4000°K \| 6W \| >80 \| Ø38mm	White	4000°K	6W	>80	Ø38mm	COB 38MM Natural White 4000°K 6W 230VAC 570lm 130° CRI>80 Ø38(Ø10mm)
EDC38C-6W-927-230VA Warm White \| 2700°K \| 6W \| >80 \| Ø38mm	Warm White	2700°K	6W	>80	Ø38mm	COB 38MM Warm White 3000°K 6W 230VAC 130° CRI>80 Ø38(Ø10mm)
EDC38C-8W-830-120VB Warm White \| 3000K \| 8W \| >80 \| Ø38mm	Warm White	3000K	8W	>80	Ø38mm	COB 38MM 3000°K 8W 120VAC 704lm 130° Cri>80 Les 9.9mm
EDC38C-8W-840-120VB White \| 4000°K \| 8W \| >80 \| Ø38mm	White	4000°K	8W	>80	Ø38mm	COB 38MM 4000°K 8W 120VAC 744lm 130° Cri>80 Les 9.9mm
EDC38C-8W-840-230VA White \| 4000°K \| 8W \| >80 \| Ø38mm	White	4000°K	8W	>80	Ø38mm	COB 38MM Natural White 4000°K 8W 230VAC 744lm 130° Cri>80 Ø38(ø10mm)
EDC38C-8W-927-230VA Warm White \| 2700°K \| 8W \| >80 \| Ø38mm	Warm White	2700°K	8W	>80	Ø38mm	COB 38MM 2700°K 8W 230VAC 704lm 130° CRI>80 Ø38(Ø10mm)
EDC47C-10W-830-230VA Warm White \| 3000K \| 10W \| >80 \| Ø47mm	Warm White	3000K	10W	>80	Ø47mm	COB 47MM Warm White 3000°K 10W 230VAC 130° Cri>80 Ø47(ø11)
EDC47C-10W-840-230VA White \| 4000°K \| 10W \| >80 \| Ø47mm	White	4000°K	10W	>80	Ø47mm	COB 47MM Natural White 4000°K 10W 230VAC 130° Cri>80 Les 11mm
EDC47C-10W-927-230VA Warm White \| 2700°K \| 10W \| >80 \| Ø47mm	Warm White	2700°K	10W	>80	Ø47mm	COB 47MM 2700°K 10W 230VAC 950lm 130° Cri>80 ø47(ø11)
EDC47C-12W-830-230VA Warm White \| 3000K \| 12W \| >80 \| Ø47mm	Warm White	3000K	12W	>80	Ø47mm	COB 47MM Warm White 3000°K 12W 230VAC 1140lm 130° Cri>80 ø47(ø11)
EDC47C-12W-927-230VA Warm White \| 2700°K \| 12W \| >80 \| Ø47mm	Warm White	2700°K	12W	>80	Ø47mm	COB 47MM 2700°K 12W 230VAC 1140lm 130° Cri>80 Les ø47(ø11)
EDC47C-15W-827-230VA Warm White \| 2700°K \| 15W \| >80 \| Ø47mm	Warm White	2700°K	15W	>80	Ø47mm	COB 47MM 2700°K 15W 230VAC 130° Cri>80 Les Ø47(ø11)
EDC47C-15W-830-230VA Warm White \| 3000K \| 15W \| >80 \| Ø47mm	Warm White	3000K	15W	>80	Ø47mm	COB 47MM Warm White 3000°K 15W 230VAC 130° Cri>80 Ø47(ø11)
EDC47C-15W-927-230VA Warm White \| 2700°K \| 12W \| >80 \| Ø47mm	Warm White	2700°K	12W	>80	Ø47mm	COB 47MM 2700°K 12W 230VAC 130° Cri>80 Ø47(ø11)
EDC47C-9W-830-230VA Warm White \| 3000K \| 9W \| >80 \| Ø47mm	Warm White	3000K	9W	>80	Ø47mm	COB 47MM Warm White 3000°K 9W 230VAC 855lm 130° Cri>80 Ø47(ø11)
EDC57C-30W-930-230VA Warm White \| 3000K \| 30W \| >90 \| Ø57mm	Warm White	3000K	30W	>90	Ø57mm	COB 57MM 3000°K 30W 230VAC 2250lm 130° Cri>90 Les 14mm
EDC57C-40W-930-230VA Warm White \| 3000K \| 40W \| >90 \| Ø57mm	Warm White	3000K	40W	>90	Ø57mm	COB 57MM 3000°K 40W 230VAC 3000lm 130° Cri>90 Les 14mm
EDC57C-12W-830-230-VA011 Warm White \| 3000K \| 12W \| >80 \| Ø57mm	Warm White	3000K	12W	>80	Ø57mm	COB 57MM 3000°K 12W 230VAC 1151-1265lm 130° Cri>80 Flicker Free
EDC57C-12W-840-230-VA011 White \| 4000°K \| 12W \| >80 \| Ø57mm	White	4000°K	12W	>80	Ø57mm	COB 57MM 4000°K 12W 230VAC 1243-1366lm 130° Cri>80 Flicker Free
EDC57C-12W-850-230-VA011 White \| 5000K \| 12W \| >80 \| Ø57mm	White	5000K	12W	>80	Ø57mm	COB 57MM 5000°K 12W 230VAC 1289-1417lm 130° Cri>80 Flicker Free
EDC57C-17W-930-230-VA011 Warm White \| 3000K \| 17W \| >90 \| Ø57mm	Warm White	3000K	17W	>90	Ø57mm	COB 57MM 3000°K 17W 230VAC 1586-1742lm 130° Cri>90 Flicker Free
EDC57C-17W-940-230-VA011 White \| 4000°K \| 17W \| >90 \| Ø57mm	White	4000°K	17W	>90	Ø57mm	COB 57MM 4000°K 17W 230VAC 1712-1882lm 130° Cri>90 Flicker Free
EDC57C-17W-950-230-VA011 White \| 5000K \| 17W \| >90 \| Ø57mm	White	5000K	17W	>90	Ø57mm	COB 57MM 5000°K 17W 230VAC 1776-1951lm 130° Cri>90 Flicker Free
EDC57C-20W-8D1-230V Warm White \| 1800-3000K \| 20W \| >80 \| Ø57mm	Warm White	1800-3000K	20W	>80	Ø57mm	COB 57MM 1800-3000°K 20W 230VAC 2200lm 130° Cri>80 Les 14mm Flicker Free
EDC57C-25W-830-230-VA011 Warm White \| 3000K \| 25W \| >80 \| Ø57mm	Warm White	3000K	25W	>80	Ø57mm	COB 57MM 3000°K 25W 230V 2730-3000lm 130° Cri>80 Flicker Free
EDC57C-25W-840-230-VA011 White \| 4000°K \| 25W \| >80 \| Ø57mm	White	4000°K	25W	>80	Ø57mm	COB 57MM 4000°K 25W 230V 2948-3240lm 130° Cri>80 Flicker Free
EDC57C-25W-850-230-VA011 White \| 5000K \| 25W \| >80 \| Ø57mm	White	5000K	25W	>80	Ø57mm	COB 57MM 5000°K 25W 230V 3058-3360lm 130° Cri>80 Flicker Free
EDC57C-8W-840-230-VA011 White \| 4000°K \| 8W \| >80 \| Ø57mm	White	4000°K	8W	>80	Ø57mm	COB 57MM 4000°K 8W 230VAC 845-929lm 130° Cri>80 Flicker Free
EDC57C-8W-850-230-VA011 White \| 5000K \| 8W \| >90 \| Ø57mm	White	5000K	8W	>90	Ø57mm	COB 57MM 5000°K 8W 230VAC 915-1005lm 130° Cri>90 Flicker Free
EDC57C-8W-930-230-VA011 Warm White \| 3000K \| 8W \| >80 \| Ø57mm	Warm White	3000K	8W	>80	Ø57mm	COB 57MM 3000°K 8W 230VAC 783-860lm 130° Cri>90 Flicker Free
EDC57C21W930230VA011 Warm White \| 3000K \| 21W \| >90 \| Ø57mm	Warm White	3000K	21W	>90	Ø57mm	COB 57MM 3000°K 21W 230VAC 2018-2218lm 130° Cri>90 Flicker Free
EDC57C21W940230VA011 White \| 4000°K \| 21W \| >90 \| Ø57mm	White	4000°K	21W	>90	Ø57mm	COB 57MM 4000°K 21W 230VAC 2179-2395lm 130° Cri>90 Flicker Free
EDC57C21W950230VA011 White \| 5000K \| 21W \| >90 \| Ø57mm	White	5000K	21W	>90	Ø57mm	COB 57MM 5000°K 21W 230VAC 2179-2395lm 130° Cri>90 Flicker Free
EDC47C-10W-830-120VB Warm White \| 3000K \| 10W \| >80 \| Ø47mm	Warm White	3000K	10W	>80	Ø47mm	COB 47MM 3000°K 10W 120VAC 950lm 130° Cri>80 Les 11mm
EDC47C-10W-840-120VB White \| 4000°K \| 10W \| >80 \| Ø47mm	White	4000°K	10W	>80	Ø47mm	COB 47MM 4000°K 10W 120VAC 950lm 130° Cri>80 Les 11mm
EDC47C-12W-830-120VB Warm White \| 3000K \| 12W \| >80 \| Ø47mm	Warm White	3000K	12W	>80	Ø47mm	COB 47MM 3000°K 12W 120VAC 130° Cri>80 Les 11mm
EDC47C-12W-840-120VB White \| 4000°K \| 12W \| >80 \| Ø47mm	White	4000°K	12W	>80	Ø47mm	COB 47MM 4000°K 12W 120VAC 130° Cri>80 Les 11mm
EDC57C-15W-830-120VB Warm White \| 3000K \| 15W \| >80 \| Ø57mm	Warm White	3000K	15W	>80	Ø57mm	COB 57MM 3000°K 15W 120V 900-1000lm 130° Cri>80 Les 14mm
