BKR400AB10

BKR400AB10


  • Contact us
    • Certifications title
    Certificazione RoHs

    Diode Schottky Barrier Diode

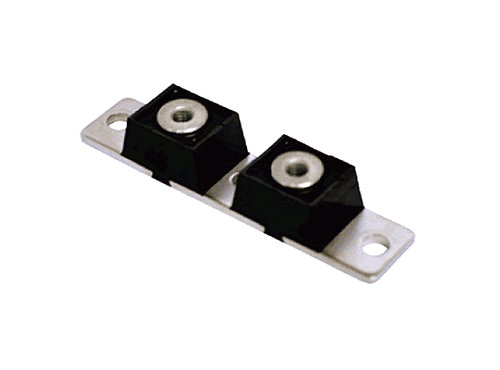

    POWER MODULE SHOTTKY BARRIER DIODE 100V 400A

    Documentation

    • Type
      Diode Schottky Barrier Diode
    • Brand name
      Sanrex
    • Vrrm [V]
    • Ifa[A]
      400A
    • Tc [°C]
      112°C
    • I2t
      54450 A2s
    • Ifsm
      3300/3620A
    • Vfm
      0,82V
    • Data sheet
      download BKR400AB10.pdf

    Sanrex

    Diode -> Schottky Barrier Diode

    Schottky diode is a metal-semiconductor junction diode with low threshold voltage and high switching speed. A metal-semiconductor junction is made in the Schottky diode to create a Schottky barrier instead of a p-n junction as in conventional diodes. The most important difference between normal diodes and Schottky diodes is the reverse recovery time. In Schottky diodes it is null since there is nothing to reset.

    Image Code Vrrm [V] Ifa[A] Tc [°C] I2t Ifsm Vfm
    yAQmwJ3Zo5NIm1x BKR400AB10

    400A
    |
    112°C
    |
    54450 A2s
    |
    3300/3620A
    |
    0,82V

    		 400A 112°C 54450 A2s 3300/3620A 0,82V POWER MODULE SHOTTKY BARRIER DIODE 100V 400A
    BKR400ABZ50

    200A
    |
    121°C
    |
    240000A2S
    |
    -
    |
    0,57V

    		 200A 121°C 240000A2S - 0,57V POWER MODULE SHOTTKY BARRIER DIODE 50V 200A
    MFLKM7RRNQE5ucR BKA400AA10

    400A
    |
    150°C
    |
    54450A2S
    |
    0,82V

    		 400A 150°C 54450A2S 0,82V POWER MODULE SHOTTKY BARRIER DIODE 100V 400A
