5FM040CWP0321001

Certifications title

Power Leds Federal Series Federal 5050 New Series

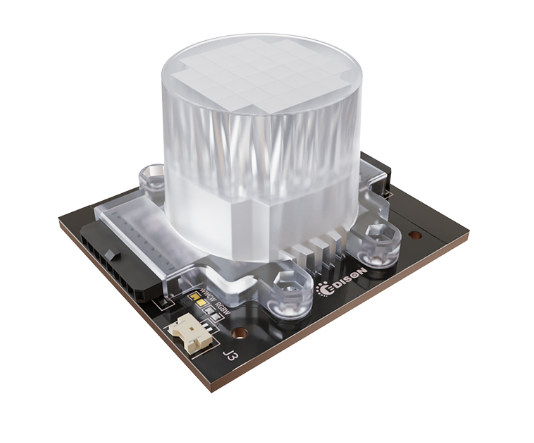

Federal 5050 Glass Type 32in1 CW Module CRI>70 -40+85°C WITH LENS

Documentation

Type

Power Leds Federal Series Federal 5050 New Series
Brand name

Edison Opto Corporation Ltd.
Colour

Cold White
CCT[°K]

6500K
Power [W]

400W
IF[mA]

5000mA
CRI

>70
Intensity [lm/mcd]

57700lm
Data sheet

Edison_Opto_datasheetFederal_5050_Glass_Type_32in1_CW_Module.pdf

Edison Opto Corporation Ltd.

Power Leds -> Federal Series -> Federal 5050 New Series

Federal 5050 Series is a smaller and brighter multi-chip LED which provides multi-color packaging flexibility. Federal is a surface mount, compact, high brightness LED that is suitable for various illumination needs such as general illumination, ashlights, streetlights, spot lights as well as industrial and commercial lightings.

Code	Colour	CCT[°K]	Power [W]	IF[mA]	CRI	Intensity [lm/mcd]
2FM004M206F03001 RGBW \| 625/530/465/4000K \| 4-10W \| 350/700mA \| 70 \| 75/112/25/115lm	RGBW	625/530/465/4000K	4-10W	350/700mA	70	75/112/25/115lm	Power Led Federal 5050 Rgbn (red, Green, Blue, Neutral White)
2FM015M206F03S01 RGBW \| 625nm/525nm/455nm/6500K \| 15W \| 1.2A \| 70 \| -	RGBW	625nm/525nm/455nm/6500K	15W	1.2A	70	-	PWL FEDERAL 5050 RTBW 115° 1.2A 5000-7000K 15W
2FM004CW06F03001 Cold White \| 6500K \| 4W \| 350-700mA \| >70 \| 350-770lm	Cold White	6500K	4W	350-700mA	>70	350-770lm	Power Led 5050 4W Cold White 120° 350-700mA 350-770lm 6500°K Fed
2FM004RX00F03000 Red \| 620-630 \| 4W \| 350-700mA \| - \| 150-380lm	Red	620-630	4W	350-700mA	-	150-380lm	Power Led 5050 4W Red 120° 350-700mA 150-380lm Fed
2FM004TX00F03000 Green \| 520/535 \| 4W \| 350-700mA \| - \| 250-480lm	Green	520/535	4W	350-700mA	-	250-480lm	Power Led 5050 4W Green 120° 350-700mA 250-480lm Fed
2FM040CW74F03S02 Cold White \| 5000-7000K \| 40W \| 1000mA \| - \| 1000-1300lm	Cold White	5000-7000K	40W	1000mA	-	1000-1300lm	Federal 5050 40W Cool White 1000-1300lm 5000-7000K
2FM004M206F03001 RGBW \| 625/530/465/6500K \| 4-10W \| 350/700mA \| 70 \| 75/112/25/155lm	RGBW	625/530/465/6500K	4-10W	350/700mA	70	75/112/25/155lm	Power Led Federal 5050 Rgbw (red, Green, Blue, White)
2FM004M300F03001 RGBA \| 625/530/465/590 \| 4-10W \| 350/700mA \| 75/112/25/75lm	RGBA	625/530/465/590	4-10W	350/700mA		75/112/25/75lm	Power Led Federal 5050 Rgba (red, Green, Blue, Amber) 4/10W
5FM001M6S0010001 RGBW \| 625/530/465 \| 4-10W \| 350/700mA \| 75/112/25lm	RGBW	625/530/465	4-10W	350/700mA		75/112/25lm	Power Led Star Federal 5050 Rgbn (red, Green, Blue, Neutral White)
2FM004WW05F03001 Warm White \| 2670-3800K \| 4W \| 350-700mA \| 80 \| 430-690lm	Warm White	2670-3800K	4W	350-700mA	80	430-690lm	PWL 5050 4W Warm White 120° 350-700mA 250-400lm Fed
5FM004WW05F03001 Warm White \| 3000K \| 4W \| 350/700mA \| >70 \| 520lm	Warm White	3000K	4W	350/700mA	>70	520lm	Power Led Star Federal 5050 Warm White (4 Chip Warm White)
2FM015M767F03S01 RGBW \| 625nm/525nm/455nm/2800K \| 15W \| 1.5A \| 70 \| 125/200/35/245	RGBW	625nm/525nm/455nm/2800K	15W	1.5A	70	125/200/35/245	PWL FEDERAL 5050 RTBX (Red, Green, Blue, Warm White)
2FM003M100F03001 Blue \| 625/528/455 \| 3W \| 350mA \| 57/162/18lm	Blue	625/528/455	3W	350mA		57/162/18lm	PWL Federal 5050 3W RGB (red, Green, Blue) -40°c+85°c 115°
2FM020M668F03S01 RGBW \| 3800-4500K \| 20W \| 350mA \| 75 \| -	RGBW	3800-4500K	20W	350mA	75	-	PWL FEDERAL 5050 RTBH 20W (Red, Green, Blue, Neutral White)
2FM015M767F03S02 RGBW \| 625nm/525nm/455nm/2800K \| 15W \| 1000-1200mA \| >80 \| -	RGBW	625nm/525nm/455nm/2800K	15W	1000-1200mA	>80	-	PWL Federal 5050 Glass Rtbx 115° 1.2A 15W
2FM025M774F03S02 RGBW \| 626nm/526nm/453nm/2800K \| 25W \| 1000mA \| >80 \| -	RGBW	626nm/526nm/453nm/2800K	25W	1000mA	>80	-	PWL Federal 5050 Glass Rtbx 115° 2.5A 25W
2FM030M774F03S02 RGBW \| 626nm/526nm/453nm/2800K \| 30W \| 1000mA \| >80 \| -	RGBW	626nm/526nm/453nm/2800K	30W	1000mA	>80	-	PWL Federal 5050 Glass Rtbx 115° 2.5A 30W
2FM040M774F03S02 RGBW \| 621/522/452nm/2800K \| 40W \| 1000mA \| 80 \| -	RGBW	621/522/452nm/2800K	40W	1000mA	80	-	PWL FEDERAL 5050 GLASS RTBX 115° 40W CRI80
2FM010M206F03S01 RGBW \| 5000-7000K \| 20W \| 1.5A \| >70 \| -	RGBW	5000-7000K	20W	1.5A	>70	-	PWL Federal 5050 Rtbx 20W (red, Green, Blue, Cold White)
2FM020M767F03S01 RGBW \| 2670-3250K \| 20W \| 1.5A \| 80 \| -	RGBW	2670-3250K	20W	1.5A	80	-	PWL FEDERAL 5050 RTBX 20W (Red, Green, Blue, Warm White)
2FM040WC74F03S02 CW/WW \| 2500-2900/5000-7000 \| 40W \| 2.5A \| >90 \| 300lm@1A/410lm@1A	CW/WW	2500-2900/5000-7000	40W	2.5A	>90	300lm@1A/410lm@1A	PWL Federal 5050 Dual Color 40W Warm White/cold White
5FM040CWP0320001 Cold White \| 6500K \| 400W \| 5000mA \| 70 \| 68100lm	Cold White	6500K	400W	5000mA	70	68100lm	Federal 5050 Glass Type 1280W 32in1 CW Module 120° CRI>70 -40+85°C
5FM040CWP0321001 Cold White \| 6500K \| 400W \| 5000mA \| >70 \| 57700lm	Cold White	6500K	400W	5000mA	>70	57700lm	Federal 5050 Glass Type 32in1 CW Module CRI>70 -40+85°C WITH LENS
5FM040WCP0521001 CW/WW \| 2500-7500K \| 600W \| 2500mA \| 95 \| -	CW/WW	2500-7500K	600W	2500mA	95	-	Federal 5050 Glass Type 52-in-1 CW+WW Module CRI 95 -40~+85°
2FM004M400F03S02 RGB \| - \| 15W \| 1.5A \| - \| -	RGB	-	15W	1.5A	-	-	PWL FEDERAL 5050 RTTB 15W (Red, Green, Blue)
2FM015M206F03S02 RGBW \| 5000-7000K \| 15W \| 1.2A \| 70	RGBW	5000-7000K	15W	1.2A	70		PWL FEDERAL GLASS 5050 RTBW 15W (Red, Green, Blue, Cool White)
2FM025M274F03S02 RGBW \| 5000-7000K \| 25W \| 1.5A/2.5A \| 70 \| -	RGBW	5000-7000K	25W	1.5A/2.5A	70	-	PWL FEDERAL 5050 Glass 25W RTBW (Red, Green, Blue, Cool White)
2FM040M2XXF03XXX RGBW \| 5000-7000K \| 40W \| 1000mA \| - \| 130/200/45/280lm	RGBW	5000-7000K	40W	1000mA	-	130/200/45/280lm	FEDERAL 5050 40W RTBW (Glass) (Red, Green, Blue, Cool White)
2FM020M206F03S11 RGBW \| Consultare scheda tecnica \| 20W \| 1000A \| - \| Refer to datasheet	RGBW	Consultare scheda tecnica	20W	1000A	-	Refer to datasheet	PWL FEDERAL 5050 RTBW 20W (Red, Green, Blue, CW 5000-7000K) w/LENS
