Common Anode Buck Converter MBI6664

Product Des cription

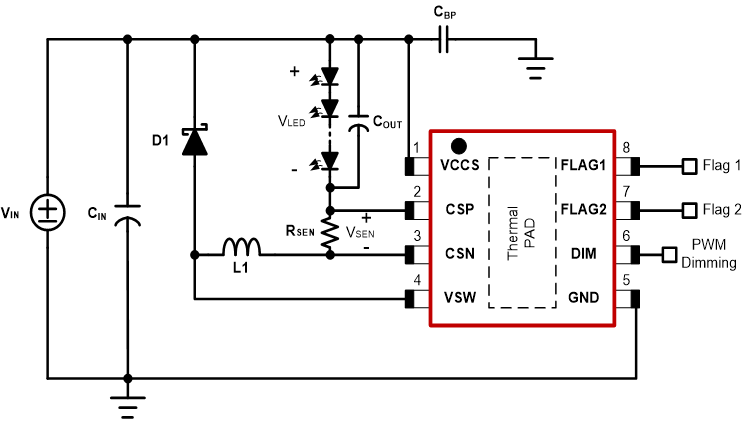

MBI6664 is a common-anode buck constant-current LED driver for high power LED stage lighting applications. Hysteretic PFM control with fast response provides high dimming resolution. The LED current can be set by an external resistor. With the integrated MOSFET, MBI6664 can save the PCB size and reduce the total cost effectively. Additionally, MBI6664 offers error flag and complete protection functions, including Under-Voltage Lockout (UVLO), Over Temperature Protection (OTP), Over Current Protection (OCP), output open protection, and output short protection, to protect system or components from being damaged by fault conditions.



  • Topology Buck / Hysteretic PFM
  • Max. Output Current per Channel 2A
  • Max. Sustaining Voltage71V
  • Supply Voltage 4.5~65V
  • Switch on Resistance 0.2Ω
  • Common Anode
  • Dimming Method Digital
  • Protection - LED Open
  • Protection - LED Short
  • Protection - Thermal Shutdown
  • Protection - Start-Up
  • Protection - UVLO
  • Protection-OCP/OCL
  • Protection - Themal Fold-back
  • Protection-OTP Error FCAG
  • Protection - OCP Error FLAG
  • Soft Start-up
  • RoHS Compliant Package SOP8
  • Major Applications
    MR11, MR16, flood light, PAR light, wall wash light, stage light, panel light, emergency lighting, street light, tunnel lighting, high power LED lighting, automotive lighting
