2T05X5CW23000003

Contattaci

Titolo certificazioni

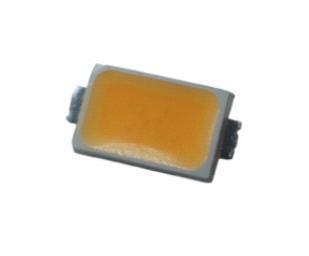

PLCC PLCC2 5630
PLCC2 5630 Bianco Freddo 5.6x3mm 120° 5000~10000°K 0,5W 150mA CRI80

Documentazione

Tipo

PLCC PLCC2 5630
Marchio

Edison Opto Corporation Ltd.
Colore

Bianco Freddo
CCT [°K; nm]

5000-6500K
IF [mA]

20mA
Intensità [lm/mcd]

55-65lm
CRI

>80
Scheda tecnica

Edison_Opto_PLCC_5630B_HVS.pdf

ET-5630B_0.5W.pdf

Edison Opto Corporation Ltd.

PLCC -> PLCC2 -> 5630

Codice	Colore	CCT [°K; nm]	IF [mA]	Intensità [lm/mcd]	CRI
ET-5630H-AF1W Bianco \| 3700-4500K \| 150mA \| 42,4-56,4lm \| 70	Bianco	3700-4500K	150mA	42,4-56,4lm	70	PLCC 5630 Bianco Naturale 4100°K 42.4-56.4lm 70mA 120°
ET-5630W-AF1W Bianco Freddo \| 5700-7000K \| 150mA \| 38,5-56,4 \| 70	Bianco Freddo	5700-7000K	150mA	38,5-56,4	70	PLCC 5630 Bianco 6000°K 38.5-56.4lm 70mA 120°
ET-5630X-AF1W Bianco Caldo \| 2700-3200K \| 150mA \| 38,5-51,3 \| 70	Bianco Caldo	2700-3200K	150mA	38,5-51,3	70	PLCC 5630 Warm Bianco 3050°K 38.5-51.3lm 70mA 120°
2T05X540A8003001 Bianco Giorno \| 4000K \| 65mA \| 36-38lm \| >80	Bianco Giorno	4000K	65mA	36-38lm	>80	PLCC2 5630 Bianco Naturale 5.6x3mm 120° 4000°K 34-38lm 65mA 0.178W 3V CRI>80
2T05X5CW11000016 Bianco \| 5000-6500K \| 65mA \| 32-38lm \| >80	Bianco	5000-6500K	65mA	32-38lm	>80	PLCC2 5630B Bianco Freddo 5.6x3mm 120° 5000-10000°K 0,5W 150mA CRI>80
2T05X5CW23000003 Bianco Freddo \| 5000-6500K \| 20mA \| 55-65lm \| >80	Bianco Freddo	5000-6500K	20mA	55-65lm	>80	PLCC2 5630 Bianco Freddo 5.6x3mm 120° 5000~10000°K 0,5W 150mA CRI80
2T05X5CWA9003102 Bianco Freddo \| 5000-6500K \| 150mA \| 60-70lm \| >90	Bianco Freddo	5000-6500K	150mA	60-70lm	>90	Plcc2 5630B Bianco Freddo 5.6x3mm 120° 6500°K 55-70lm 0.5W 150mA Cri90
2T05X5NW11000004 Bianco \| 3800-5000K \| 150mA \| 45-58lm \| 80	Bianco	3800-5000K	150mA	45-58lm	80	PLCC2 5630 Bianco Naturale 5.6x3mm 120° 3800~5000°K 0,5W 150mA CRI80
2T05X5NW11000016 Bianco Giorno \| 4000K \| 65mA \| 32-36lm \| >80	Bianco Giorno	4000K	65mA	32-36lm	>80	Plcc2 5630B He Bianco Naturale 5.6x3mm 120° 4000°K 0.5W 65mA(Typ) Cri>80
2T05X5NW20000001 Bianco Giorno \| 3800-5000K \| 150mA \| 51-66lm \| 70	Bianco Giorno	3800-5000K	150mA	51-66lm	70	PLCC2 5630 Bianco Naturale 5.6x3mm 120° 3800~5000°K 0,5W 150mA CRI70
2T05X5WW11000006 Bianco Caldo \| 2670-3800K \| 150mA \| 45-58lm \| 80	Bianco Caldo	2670-3800K	150mA	45-58lm	80	PLCC2 5630 Warm Bianco 5.6x3mm 120° 2670~3800°K 0,5W 150mA CRI80
2T05X5WW11000016 Bianco Caldo \| 2700-3500K \| 65mA \| 30-36lm \| >80	Bianco Caldo	2700-3500K	65mA	30-36lm	>80	PLCC2 5630HE Warm Bianco 5.6x3mm 120° 2670-3800°K 0,5W 150mA CRI>80
2T05X5WW23000003 Bianco Caldo \| 2700-3500K \| 20mA \| 50-55lm \| >80	Bianco Caldo	2700-3500K	20mA	50-55lm	>80	PLCC 5630B Hvs Bianco Caldo 5.6x3mm 120° 2670-3800°K 24Vdc 20mA Cri>80
2T05X5WW23000009 Bianco Caldo \| 2700-3500K \| 150mA \| 60-65lm \| >80	Bianco Caldo	2700-3500K	150mA	60-65lm	>80	PLCC2 5630 Warm Bianco 5.6x3mm 120° 2670-3800°K 150mA CRI80
2T05X5WW27000004 Bianco Caldo \| 2700-3500K \| 30mA \| 55-60lm \| >80	Bianco Caldo	2700-3500K	30mA	55-60lm	>80	PLCC2 5630 Warm Bianco 5.6x3mm 120° 2670-3800°K 150mA CRI>80
2T05X5WW38000001 Bianco Caldo \| 2700-3500K \| 150mA \| 40-50lm \| >90	Bianco Caldo	2700-3500K	150mA	40-50lm	>90	PLCC2 5630 Warm Bianco 5.6x3mm 120° 2670~3800°K 150mA CRI90
2T05X5BX00000002 Blu \| 450-460nm \| 150mA \| - \| -	Blu	450-460nm	150mA	-	-	Plcc2 5630 Blu 5.6x3mm 120° 450-460nm 0.5W 150mA
2T05X5EX00000001 Rosso Profondo \| 650-670nm \| 150mA \| - \| -	Rosso Profondo	650-670nm	150mA	-	-	PLCC 5630B 5.6x3mm 120° 650-670nm 0,5W 150mA 2.2V 109.8mW
2T05X5FX00000001 Rosso \| 720-745nm \| 150mA \| - \| -	Rosso	720-745nm	150mA	-	-	PLCC 5630B 5.6x3mm 120° 720-745nm 0,5W 150mA 2.2V 84.5mW
2T05X5NWA9003102 Plcc2 3528 Bianco Naturale 3.5x2.8mm 620-630nm 0.5W 55-70lm 150mA	Plcc2 3528 Bianco Naturale 3.5x2.8mm 620-630nm 0.5W 55-70lm 150mA
