The 3-Phase Diode allow to improve the voltage and current waveforms both on the mains side (current closest to a sinusoid) and on the load side (more constant voltage). The most used configuration is the bridge one. Configurations can be:
- Half-wave rectifier
- Full wave rectifier (bridge)
There is also the controlled version, in which the diodes are replaced by thyristors. In this case the thyristors are used to differentiate the output voltage by varying the firing angle (or firing delay). The main application of these rectifiers is in the speed control of DC motors.
Image | Code | Ifa[A] | Vrrm[V] | |
---|---|---|---|---|
DF100AC160
100A | 1600V
|
100A | 1600V | Power Module 3-PHASE Diode 1600V 100A Isolated Pkg | |
DF150AE160
150A | 1600V
|
150A | 1600V | Power Module 3-PHASE Diode 1600V 150A Isolated Pkg | |
DF150AE80
150A | 800V
|
150A | 800V | Power Module 3-PHASE Diode 800V 150A Isolated Pkg | |
DF200AC160
200A | 1600V
|
200A | 1600V | 3-PHASE DIODE DF-LA 1600V 200A | |
DF200AE160
200A | 1600V
|
200A | 1600V | 3-PHASE Diode Df-ae 1600V 200A | |
DF200AE80
200A | 800V
|
200A | 800V | 3-PHASE Diode Df-ae 800V 200A | |

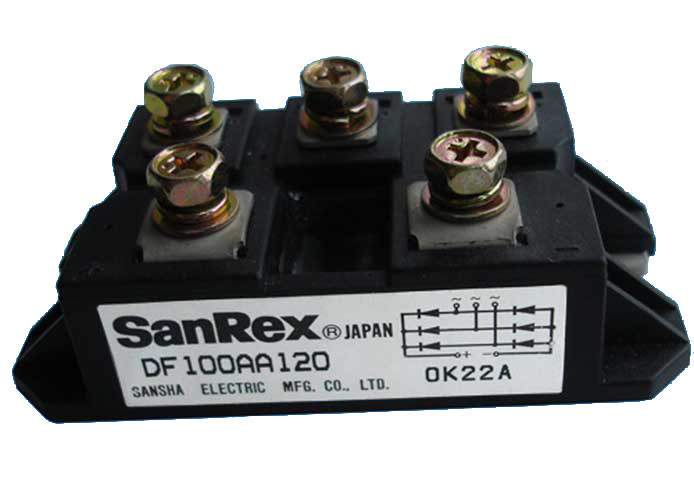

DF75AC160
75A | 1600V
|
75A | 1600V | POWER MODULE 3-PHASE DIODE 1600V 75A ISOLATED PKG | |
DFA200AA160
200A | 1600V
|
200A | 1600V | 3-PHASE DIODE THRYRISTOR DFA 1600V 200A ISOLATED PCK | |
DFA200CB80/160
200A | 1600V
|
200A | 1600V | 3-PHASE DIODE+THYRISTOR DFA 1600V 200A | |
DF20NA80F1/160F1
20A | 800-1600V
|
20A | 800-1600V | 3-PHASE Diode Df-na 800-1600V 20A | |
DF20NA80S1/160S1
20A | 800-1600V
|
20A | 800-1600V | 3-PHASE DIODE DF-NA 800-1600V 20A | |
DF30NA80F1/160F1
30A | 800-1600V
|
30A | 800-1600V | 3-PHASE DIODE DF-NA 800-1600V 30A | |
DF30NA80S/160S
30A | 800-1600V
|
30A | 800-1600V | 3-PHASE DIODE DF-NA 800-1600V 30A | |
DF100AA120/160
100A | 1200-1600V
|
100A | 1200-1600V | 3-PHASE Diode Df-na 1200-1600V 100A | |
DFA100BA80/160
100A | 800-1600V
|
100A | 800-1600V | 3-PHASE Diode Thryristor Dfa 800-1600V 100A | |
DFA50BA80/160
50A | 800-1600V
|
50A | 800-1600V | 3-PHASE DIODE THYRISTOR DFA 800-1600V 50A | |
DFA75BA80/160
75A | 800-1600V
|
75A | 800-1600V | 3-PHASE DIODE THYRISTOR DFA 800-1600V 75A | |
DF60AA120/160
60A | 1200-1600V
|
60A | 1200-1600V | 3-PHASE DIODE DF-AA 1200-1600V 60A | |
DF60BA80
60A | 800V
|
60A | 800V | 3-PHASE DIODE DF-BA 800V 60A | |
DF30CA80/160
30A | 800-1600V
|
30A | 800-1600V | 3-PHASE DIODE DF-NA 800-1600V 30A | |
DF100BA80
100A | 800V
|
100A | 800V | 3-PHASE Diode Df-ba 800V 100A | |
DF100LA80/160
100A | 800-1600V
|
100A | 800-1600V | 3-PHASE DIODE DF-LA 800-1600V 100A | |
DF75AA160
75A | 1600V
|
75A | 1600V | Power Module 3-PHASE Diode 1600V 75A | |
DF60NB160-
60A | 1600V
|
60A | 1600V | 3-PHASE Diode Df-nb 1600V 60A Isolated Sip Pkg Pins In Line | |
DFA150AA160
100A | 1600V
|
100A | 1600V | 3-PHASE Diode + Thryristor Dfa 1600V 100A Isolated Pck | |
DF150AB160
150A | 1600V
|
150A | 1600V | Power Module 3-PHASE Diode 1600V 150A Isolated Pkg | |
DF200AB160
200A | 1600V
|
200A | 1600V | Power Module 3-PHASE Diode 1600V 200A Isolated Pkg | |
DF100NB160
100A | 1600V
|
100A | 1600V | 3-PHASE Diode Df-nb 1600V 100A | |
DF75NB160
75A | 1600V
|
75A | 1600V | Power Module 3-PHASE Diode 1600V 75A Isolated | |
DF30AA160
30A | 1600V
|
30A | 1600V | 3-PHASE Diode Bridge Type 1600V 30A |
